AC water cooled capacitor for induction-heating circuit
High power capacitor made for induction heating equipment and melting furnaces.
Water-cooled capacitor are in high demand, particularly for induction heating plants where the frequency of the current supply is above 50 cycles/second, the adoption of water-cooled capacitors will save cost for capacitor bank for power factor correction and reduce the occupy space.
Water Cooled Induction Heating Capacitor
Compare with conventional melting furnace, the inductive melting technology make the melting work easier than ever, it’s popular used in forging, tempering and melting of metals. The benefits include high efficiency, fast heating speed, controllable heating temperature and melting quality, pleasant working enviroment, guranteed occupational safety,enviroment friendly etc. And the inductive melting achieves higher smelting quality in terms of controllable operation. The Induction technoloy is suitable for bulk casting production in grey iron foundries since it can handle high output and large capacities.
Water cooled induction heating capacitors
Induction Melting Furnace Capacitor
Power Capacitors designed for Induction Melting System usually with cooling design to decrease the generated heat during the operation of the induction power system.
Self-cooling method: Cooling is obtained by natural air circulation
Forced-ventilation method: Cooling is obtained by ventilators/fans
Water-cooled method: The capacitor will be desigend with built-in cooling water tubes for cooling down the capacitor.
Medium Frequency Capacitor Designed For Inductive Heating Circuits

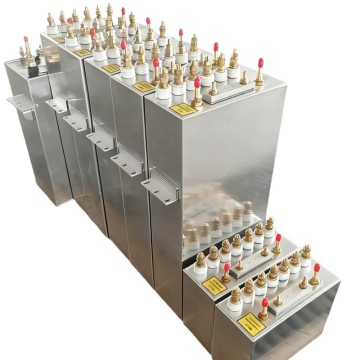

Resonant Capacitor for High-Power Induction Heating and Melting Equipments
Series Resonant capacitor used in high-power Medium Frequency Induction Furnace for Silicon Melting or steel melting.
For an efficient solid state power sources for induction furnace, usually have the induction heating load driven at its natural resonant frequency.
The furnace coil and a capacitor form a resonant tank circuit. The metal to be heated in the coil which resulting in shift in the frequency. The resonant tank circuit is returned via frequency control circuit to achieve resonance and to enable maximum power transfer to the load at all time.
Induction Heating Capacitor For Melting Furnace
Technical properties
1.Water cooled Capacitor standard: GB/T3984.1-2004/IEC60110-1:1998
2.Insulation shell and non-insulation shell design for options
3.Professional dielectric system design for high efficiency
4.Special cooling system design for good heat dissipation (single water tube, double water tube, four water tubes)
5.Between the capacitor terminals, it could withstand line frequency of 2.0UN or DC 4.0UN for 10seconds;
6.Between the insulation capacitor shell and terminals, it could withstand power-frequency test voltage 2.15UN, Minimum 2000V, last for 10 Seconds.
7.Capacitance tolerance: -5%~+10%;
8.Under rated power frequency voltage, the dissipation factor tgδ ≤0.0008;
Cooling Tube sealing test: air pressure 1MPAa, last for 2mins.
Power Capacitor For Induction Melting Solutions
The induction heating capacitor is specially designed for power factor correction in the induction heating, melting, stirring, casting, as well as tuning the inductive heating circuit. The voltage of the intermediate frequency induction heating furnace must be appropriate. If the voltage too high, it will cause the capacitor breakdown due to over voltage.
We specialized in power capacitor with heavy current electrics and high Kvar which are popular to use in foundries.
