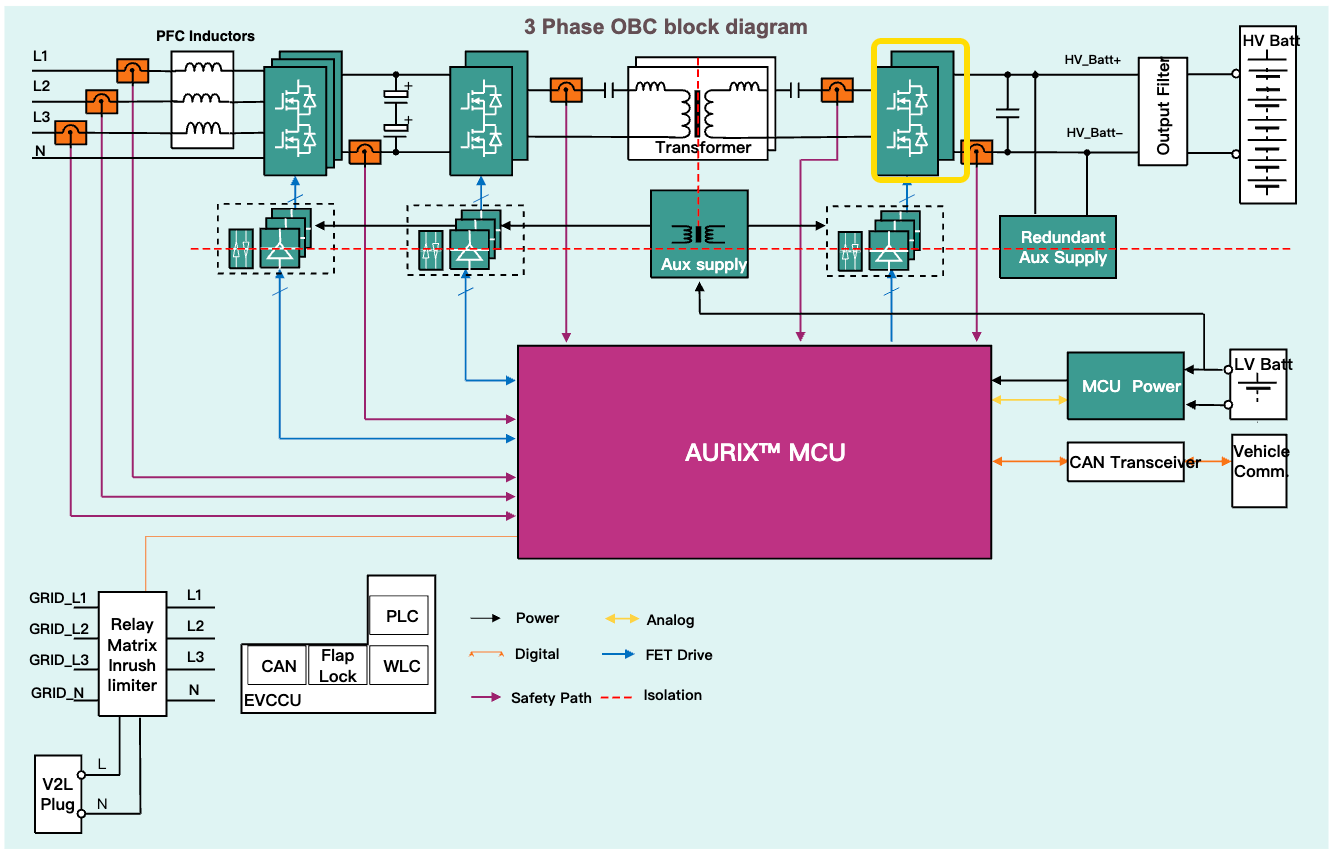

Capacitor of automotive charger
2024-07-23 19:23:48
Features
■ RoHS compliant
Standards: IEC61071
Widely used in DC-Link circuit for filtering energy storage
Stable performance and longer life
Outline drawing
Unit:mm
Specification＆size
| CN ( μF) | UN(V.DC) | (mm) | ||||||
| W | T | H | P1 | P2 | φD | L | ||
| 60 | 900 | 58 | 35 | 50 | 52.5 | 20.3 | 1.2 | 4 |
Technical data
| Rated capacitance | CN | 60 μF±5% |
| Rated voltage | UN @85℃ | 900V.DC |
| UN @70℃ | 1000V.DC | |
| UN @105℃ | 600V.DC | |
| Max. ripple voltage | Ur | ≤15%UN |
| Non-recurrent surge voltage | Us | 1350V |
| Rated energy | WN | 25.52Ws |
| Maximum current | Irms | 30A @10KHz,85℃ |
| Voltage climb rate | Dv/dt | 20V/ μS |
| Maximum peak current | Î | 1260A |
| Maximum surge current | Is | 3780A |
| Series resistance | ESR | ≤5.5m Ω @10KHz |
| Tangent of the loss | tan δ | 0.002(@25℃ 1KHz) |
| Self inductance | Le | 1nH/mm pitch & lead length used |
| Self discharge time const. | C ×Ris | ≥10000S (100V.DC 60S) |
| Operating temperature | -40~105°C Above 85°C the rated voltage must be de- rated at 1.25% per °C | |
| Storage temperature | Θstorage | -40~105°C |
| Service life | at Θhotspot | 100000h @1.0UN,85℃ |
| Failure quota | 10 fit (≤ 1×10-9/h) at 0.5×UN, 40℃ |
Test data
| Voltage test between terminals | Vtt | 1.5UN /10S |
| A.C. voltage test terminal/container | Vt-c | 3000V.AC/60S |
| Operating altitude | Max | 3500m |
