Understanding the Role of DC Filtering Capacitors in Power Electronics Performance
You know, DC filtering capacitors are pretty much the unsung heroes when it comes to making power electronic systems run smoothly. They help tame those pesky voltage fluctuations and cut down on ripple in DC signals, making sure your devices perform reliably and efficiently. This is especially crucial in stuff like renewable energy setups, electric cars, and industrial machinery—places where stability isn't just a bonus, it’s a must.
**Pro tip:** When you're picking out a DC filtering capacitor, don’t forget to pay close attention to the voltage rating. Going for a capacitor with a rating well above your peak voltage isn’t just about safety; it also helps the component last longer and avoids early failures—especially in tough environments.
Also, think about the capacitance value itself. It’s a big deal since it directly impacts how well the capacitor smooths out voltage hiccups. A bigger capacitance can do a better job at filtering, but obviously, size and cost come into play. Sometimes, mixing different types—like electrolytic and ceramic capacitors—works best because you get to take advantage of their unique strengths.
**Another tip:** Make it a habit to check on your capacitors periodically. Keeping an eye on their health can help catch issues early before they cause bigger problems down the line. A solid maintenance routine means you’ll replace worn-out parts in time, keeping everything ticking smoothly and avoiding surprises that could mess with your system’s performance.
How to Optimize Performance and Longevity with DC Filtering Capacitors in Power Electronics
| Parameter | Description | Impact on Performance | Recommended Value |
| Capacitance (μF) | The value of the capacitor in microfarads. | Determines the filtering effectiveness and response time. | 10 - 1000 μF |
| ESR (Equivalent Series Resistance) | Resistance offered by the capacitor in its AC operation. | Affects heat generation and ripple current handling. | < 50 mΩ |
| Ripple Current Rating | Maximum AC current the capacitor can handle. | Influences longevity and stability under operational conditions. | Up to 20 A |
| Voltage Rating (V) | Maximum DC voltage the capacitor can withstand. | Critical for preventing breakdown and ensuring reliability. | At least 1.5 times the operational voltage |
| Temperature Coefficient | How capacitance changes with temperature. | Affects performance stability across temperature variations. | ±10% over -40°C to +85°C |
Key Performance Metrics: Voltage Ripple, Efficiency, and Thermal Management
When it comes to power electronics, the performance and lifespan of these systems really hinge on the quality of DC filtering capacitors. Things like voltage ripple, efficiency, and how well the system manages heat are super important if you want everything to run smoothly. You know that voltage ripple—the little fluctuations in the output voltage—can cause issues and make the whole system less reliable. That’s why using top-notch capacitors is a game-changer; they help keep the ripple down, which means more stable power supply and better overall performance.
Efficiency is another big deal and depends a lot on the capacitors you pick. Those with low equivalent series resistance (or ESR) do a great job at cutting energy losses, making the whole system run more effectively. At Flair Electronics Wuxi Ltd, we’ve been in the capacitor game for years, and we really understand what it takes to boost efficiency in power systems. Our designs are all about custom solutions—making sure our capacitors meet the highest standards of reliability and performance.
Heat management is crucial too—if a capacitor can’t handle the heat, it'll wear out faster, and nobody wants that. We place a lot of focus on making sure our capacitors can operate within safe temperature ranges, so they last longer and stay reliable. At Flair, we’re always pushing to improve thermal stability through innovation and industry insight. Our goal? To deliver capacitors that not only work great but also stand the test of time, keeping your systems running smoothly for years to come.
Selecting the Right Capacitor Types: Ceramic, Electrolytic, and Film Capacitors
You know, in the world of power electronics, choosing the right type of capacitor is more important than ever if you want your stuff to run smoothly and last longer. Usually, people go for ceramic capacitors—they're small, reliable, and get the job done pretty well. As the industry moves more and more toward electrification—think electric cars, renewable energy setups, and industrial motors—the demand for capacitors that handle high frequencies and can be packed tightly is really picking up. Recent market reports suggest that the ceramic capacitor market is set to grow quite a bit, mainly because of innovations like wireless charging and the rise of multilayer ceramic capacitors (MLCC).
That said, electrolytic and Film Capacitors aren’t going anywhere, especially in applications where you need higher capacitance. Plus, with the rise of automotive electronics, there's a need for capacitors that can handle tough environments and electrical stresses. Market forecasts show that the overall capacitor scene is expanding fast, with newer types like ultracapacitors and polymer capacitors gaining popularity—mainly because industries are really focusing on energy efficiency and sustainability. All this highlights how important it is to pick the right capacitor—one that fits your design needs and keeps your system sturdy over the long haul.
Impact of DC Filtering Capacitors on System Longevity and Reliability
You know, DC filtering capacitors might not sound like the most exciting thing ever, but trust me, they’re actually pretty crucial when it comes to making power electronics last longer and work more reliably. Basically, they help smooth out voltage ripples and keep the DC output steady, which is a big deal for the health and performance of all those tiny components inside. I came across a report from IEEE that said using top-quality DC filtering capacitors can cut down the stress on those active parts by up to 30%. That’s a pretty big difference because less ripple means less heat and wear and tear—kind of like giving your equipment a nice long-life buff.
And here’s the cool part: picking the right capacitors and installing them properly can actually boost how long your system runs without breaking. According to some study by Power Electronics Magazine, systems with smarter filtering can see their mean time between failures — or MTBF — go up by about 40%. That’s a huge plus, especially for things like renewable energy setups, electric cars, or big industrial machines, where downtime can cost a lot. So, in a nutshell, using solid DC filtering capacitors doesn’t just make things run smoother today but also saves you money down the line with fewer repairs and replacements. Definitely a key piece in designing dependable power systems.
Design Best Practices for Implementing DC Filtering Capacitors
When you're working on designing power electronics systems, it's super important to include DC filtering capacitors—they really make a big difference in both how well everything works and how long the system lasts. A good starting point is picking the right type of capacitor. For example, aluminum electrolytic and ceramic capacitors are pretty common choices, but they don’t all perform the same under different conditions. If your circuit’s dealing with a lot of ripple current, it’s better to go for capacitors with low equivalent series resistance (ESR)—those tend to handle things more smoothly. Also, make sure that the voltage ratings are a bit higher than your actual operating voltages—it's kinda like a safety margin so you don’t end up shortening their lifespan or causing failures.
Another thing to keep in mind is where you place these capacitors in your circuit. Putting them as close to the load as possible is usually best because it reduces the inductance and resistance in the traces, which helps your system perform better. Don’t forget about heat—good thermal management matters too. Giving enough space around the capacitors and making sure they get proper ventilation can really help prevent overheating and stretch out their lifespan. And if you’re aiming for really smooth filtering, mixing different capacitor values can do the trick—this combo can cut down voltage spikes and give your system more stability overall.
Industry Standards and Guidelines for Capacitor Selection in Power Applications
When you’re picking out DC filtering capacitors for your power electronics setup, it’s honestly pretty important to stick to industry standards and guidelines. Doing so helps make sure your system performs well and lasts longer. For example, the IEC (that’s the International Electrotechnical Commission) points out that factors like voltage and temperature derating can really make a difference in how reliable your capacitors are—basically, scaling back on voltage or temperature stress can give them a much longer life. In fact, a 20% reduction in voltage can boost the lifespan of aluminum electrolytic capacitors by over 50%, according to some folks at the Capacitor Manufacturers Association. That just goes to show how crucial it is to do a proper evaluation of your capacitors, making sure they meet IEC 60384 standards for durability in power setups.
On top of that, it’s super important to pick capacitors that can handle the ripple currents your circuit demands. Data from the Electronics Components Industry Association suggests that using capacitors with enough ripple capacity can cut failure rates by up to 30%, especially in high-frequency PWM applications. Also, making sure your capacitors meet the latest ISO and military specs can really help ensure they can handle tough performance requirements. All this stuff adds up to a more reliable, efficient system—and honestly, it’s key to getting your power electronics design just right.
Performance and Longevity of DC Filtering Capacitors in Power Electronics
This chart illustrates the performance scores of various DC filtering capacitor models used in power electronics applications. A higher score indicates better performance and longevity in power applications.
Enhancing Power Quality with AC Filtering Film Capacitors: Insights from the Latest Industry Performance Reports
In recent years, the demand for high-quality power solutions has surged, driven by the increasing integration of renewable energy sources and the need for improved reliability in electrical systems. The latest industry performance reports indicate a significant rise in the adoption of AC filtering film capacitors, which are renowned for their effectiveness in enhancing power quality. These capacitors, featuring a robust aluminum cylinder shell with dry resin encapsulation, provide exceptional durability and resistance to environmental factors, making them ideal for various applications.
One standout feature of these capacitors is their metalized film dielectric, which not only ensures high performance but also contributes to a reduction in harmonic distortion within electrical systems. Recent studies have shown that the implementation of AC filtering capacitors can lead to a measurable decrease in reactive power losses, enhancing overall system efficiency. The availability of both single-phase and three-phase configurations allows for versatile use in a wide range of industrial and commercial settings.

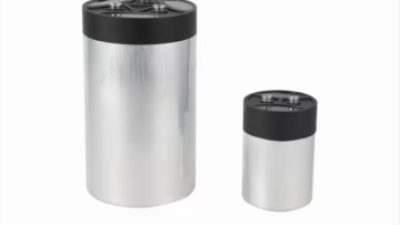

Furthermore, the design includes copper male/female nut terminals and options for lead types—either a male M8*20 screw bolt or female M6*10 screw nut—ensuring straightforward installation and compatibility with existing electrical setups. The bottom-mounted type, whether screw-fixed or flat base, further enhances versatility, catering to various mounting preferences. Collectively, these features position AC filtering film capacitors as a critical component in modern power solutions, significantly bolstering performance while promoting energy efficiency.
FAQS
: DC filtering capacitors enhance the performance of power electronic systems by smoothing out voltage fluctuations and reducing ripple in DC signals, ensuring efficient operation of devices.
Selecting a capacitor with a voltage rating significantly above the peak voltage enhances safety and longevity, preventing premature failure in high-stress environments.
The capacitance value affects the filtering capability; higher capacitance can better smooth voltage variations, but it should be balanced with size and cost constraints.
A combination of different capacitor types, such as electrolytic and ceramic capacitors, is recommended to leverage their unique characteristics for optimal performance.
Regular monitoring helps detect degradation early, allowing for replacement before performance issues occur, thereby maintaining system reliability.
By mitigating voltage ripple and stabilizing DC output, they reduce stress on active components, potentially improving operational reliability by up to 30% and increasing the mean time between failures (MTBF).
The ceramic capacitor market is projected to grow significantly due to advancements in wireless charging technologies and increasing demand for high-frequency performance in sectors like electric vehicles and renewable energy.
Utilizing high-quality capacitors can reduce thermal stress, extend the service life of components, and lead to significant long-term cost savings through reduced maintenance and replacement needs.
There is a growing traction for passive components, including ultracapacitors and polymer capacitors, in energy storage systems as industries focus more on efficiency and sustainability, indicating an evolving market landscape.
