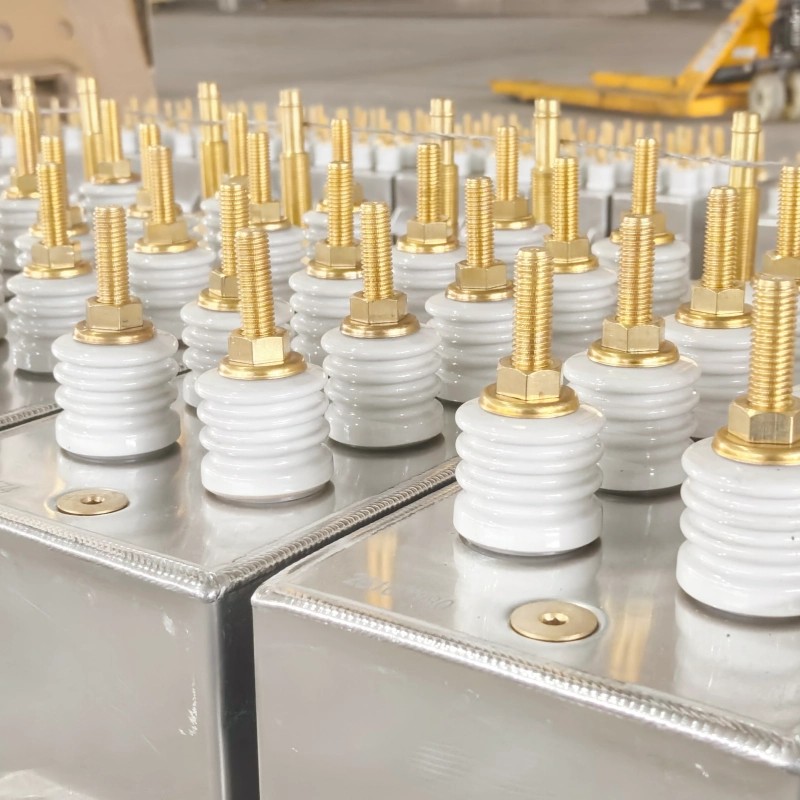

China Suppliers: Resonant Capacitor Bank for Medium-Frequency Induction Heating Furnace - 38% Energy Savings from Factory
Here we are introducing one of our special power capacitor banks which used in medium-frequency induction heating furnace. By choosing suitable capacitor banks for your induction heating system may saving up 38% energy and improving induction heating performance up 22%.
38%
Energy Saving Potential
22%
Heating Performance Improvement
So to be a crucial components in medium-frequency induction heating furnace, what is the core function of capacitor banks?
- 1 Resonant circuit formation: It will connect with the induction coil to create resonance, maximizing current amplitude in the coil for intense magnetic fields and effectively heating.
- 2 Reactive power compensation: Provide with reactive power to support the inductive coil and whole induction heating power system, so as to improve overall power factor and tune circuit.

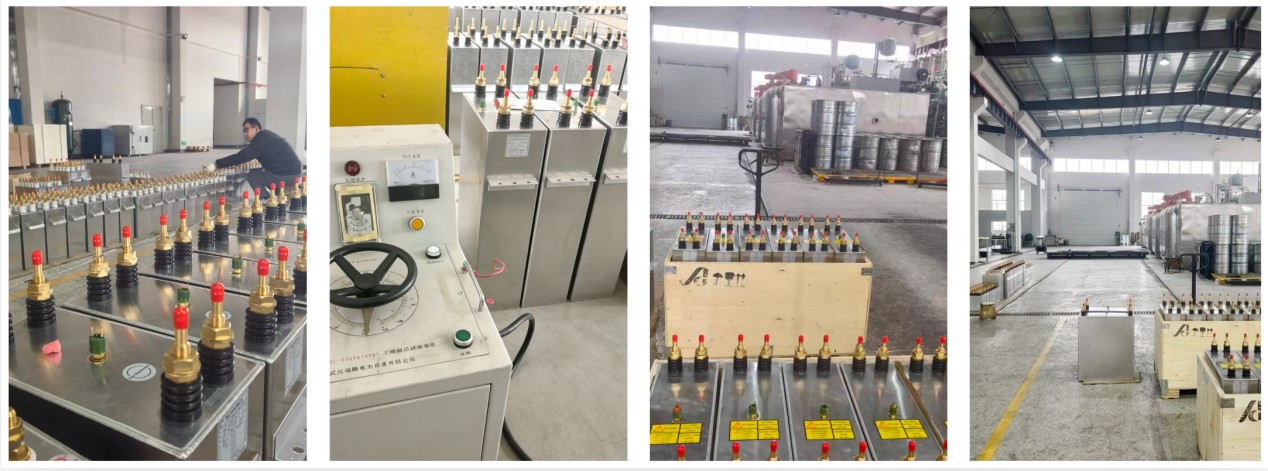

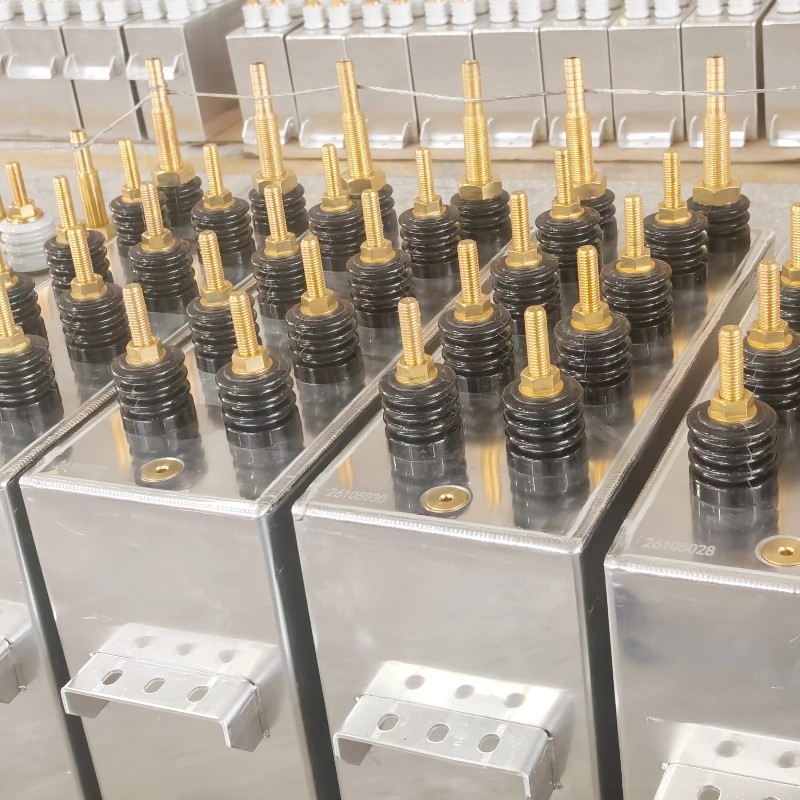

What type of induction heating capacitor banks do you need?
- There are solid medium, liquid medium for options, air-cooled, water-cooled for options;
- Higher frequency Higher Voltage level like 500Hz~300kHz is applicable of liquid medium with internal water-cooling heat dissipation design.
- Lower frequency Lower voltage like 50hz~300Hz is applicable of solid/liquid medium with air-cooling design.
But it is not absolute design capacitor in this way. We have many design with frequency up to 10khz water-cooled capacitors, and 5khz air-cooled capacitors as well. The induction heating capacitor bank design mostly depends on the medium-frequency design and structure, such as frequency 500hz~300khz, voltage level, IGBT based or thyristor-based MF power supplies, cooling method, series or parallel resonance circuit, work-piece properties. The work-piece properties will affect a lot for whole induction heating system design.
Here is reference about recommended frequency ranges.
Resonant Capacitors’ Role in Different MF Furnace Types
- 1 Parallel Resonant Circuits: The capacitor bank is connected in parallel with the induction coil, common in traditional thyristor-based MF power supplies.
- 2 Series Resonant Circuits: The capacitor bank is connected in series with the load, a more modern, efficient design that allows for higher power factors and easier control.

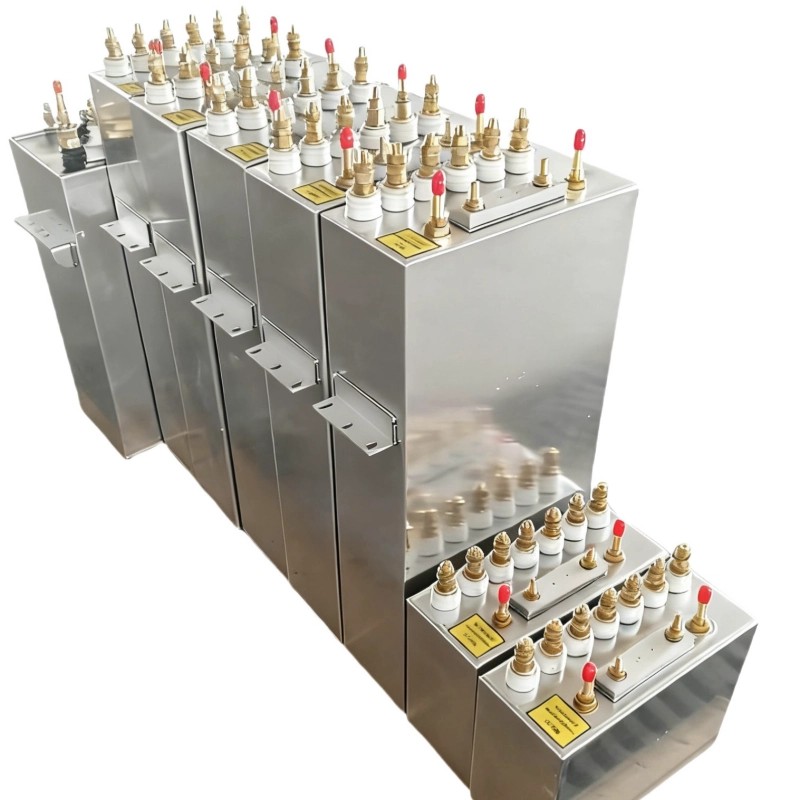

Required data for customizing a resonant capacitor bank
- Voltage level (AC or DC)?
- Rating Current?
- Frequency?
- Output Power/capacitance value: kVar/microfarad?

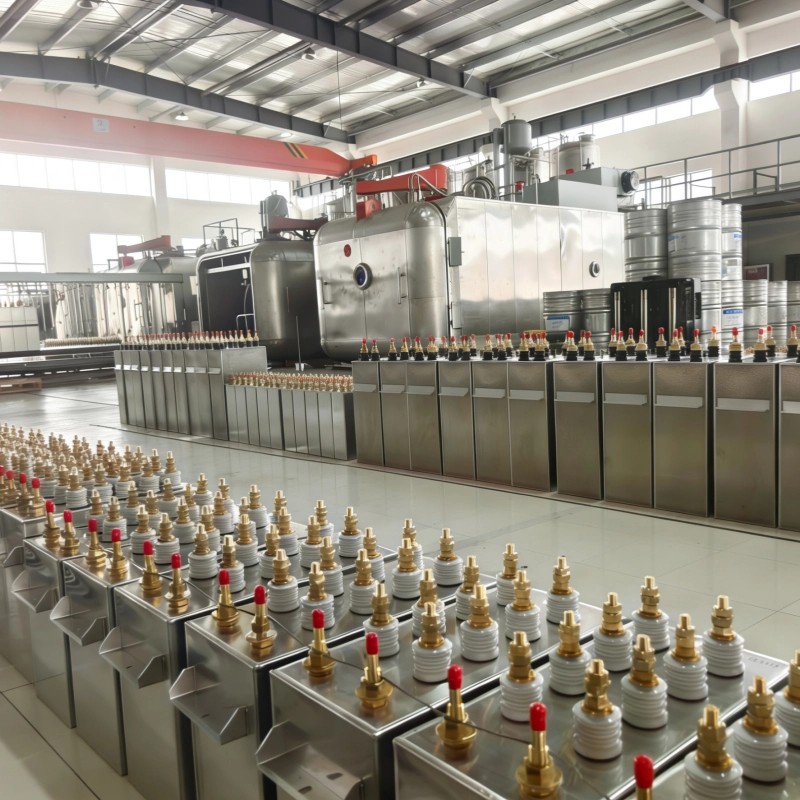

Quality Guarantee

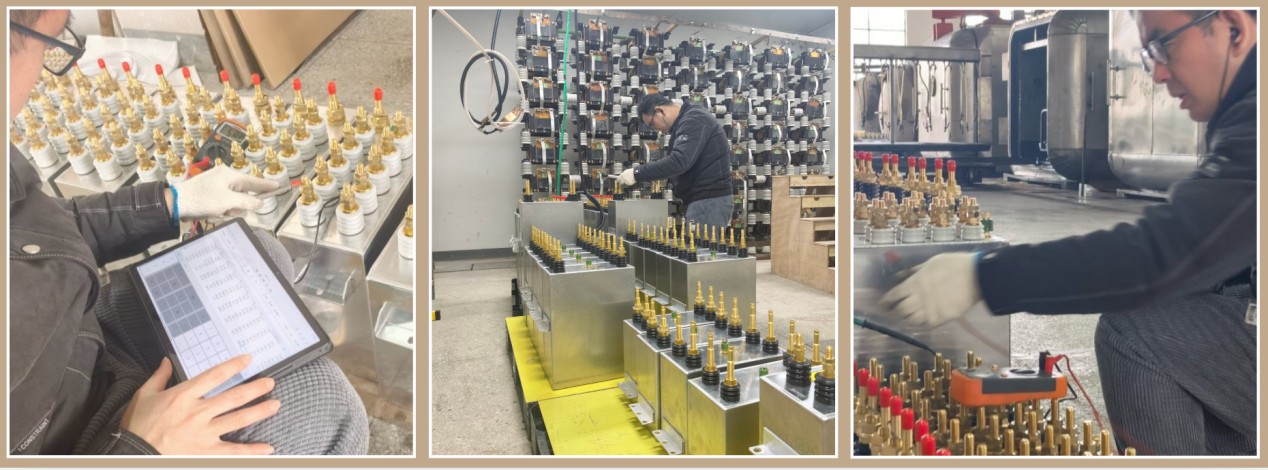

- 1 Individual Test Certificate: Each unit must come with a test report of withstand voltage and actual capacitance/voltage/current measurement, leak test etc.
- 2 Connection Compatibility: specify the terminal threads and the cooling water inlet/outlet threads.
- 3 Capacitor manufactured according to IEC 60110-1: specific to induction furnace capacitors.
- 4 Dielectric: Polypropylene film (PCB-free), All-film structure, good for harsh working environment.
- 5 Case Material: Aluminum alloy (Non-Magnetic).
- 6 Losses (W/kvar): Lowest possible value (e.g., < 0.5 W/kvar).
- 7 Third-Party Inspection available.
Frequently Asked Questions (FAQ)
Q1: How much energy can be saved by choosing the right resonant capacitor bank?
Choosing the suitable capacitor banks for your induction heating system can save up to 38% energy and improve induction heating performance by up to 22%.
Q2: What are the core functions of capacitor banks in medium-frequency induction heating furnaces?
The core functions are: 1) Resonant circuit formation (connecting with the induction coil to create resonance and maximize current amplitude for effective heating) and 2) Reactive power compensation (improving the overall power factor and tuning the circuit).
Q3: When should I choose liquid medium water-cooled capacitors over solid medium air-cooled ones?
Generally, higher frequency and higher voltage levels (500Hz to 300kHz) require liquid medium with internal water-cooling designs. Lower frequency and lower voltage levels (50Hz to 300Hz) are typically suitable for solid or liquid medium with air-cooling designs, though custom exceptions apply.
Q4: What information is required to customize a resonant capacitor bank?
To customize your capacitor bank, you need to provide the voltage level (AC or DC), rating current, frequency, and output power/capacitance value in kVar or microfarads.
Q5: What standards and quality guarantees do these capacitors meet?
They are manufactured according to the IEC 60110-1 standard specifically for induction furnaces. Quality guarantees include individual test certificates for voltage/capacitance, PCB-free polypropylene film dielectrics, non-magnetic aluminum alloy cases, low losses (
