DC filtering capacitor
Dielectric: Metalized self-healing film
Metal housing with great resistance to shock
high peak current
high energy density
DC filtering, DC voltage support
Max 9000VDC
Metallized film DC filter capacitor
High-voltage high-capacity Metallized film DC filter capacitor
1.Capacitance Range： 220μF ~ 8000μF
2.Capacitance: ±10%
3.Voltage Range: 800 ~ 2000 V
4.Maxmum Current: 360Arms
5.Stray lnductance( Ls): 28nH ~ 40nH
6.Test Voltage between terminals:1.5Un dc 10s
7.Test Voltage between terminals and case: 4kVac 50Hz 1min.

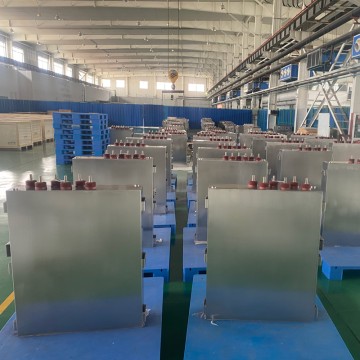

High-capacity DC support capacitor
Description
The windpower, solar power, HVDC is developing fast. So the power system faces the demand of diversity regulation. Required by time and tide, a great attention is devoted to power conversion, energy storage and transmission. Flair has been offering capacitors for power conversion, energy storage and power distribution and transmission. With our rich experience and strong RD team, we focus on providing with the most professional propoals and serving high-quality products failthfully and responsibly.
High voltage and high current working enviroment will accelerate the aging of capacitors that cause capacitor faulture easily. We studied on this project since 2017 when the national double carbon call is promoted. We have conquered key technology of large-capacity DC capacitor banks with satisfactory operation under harsh working enviroment.
Custom dc-link film capacitor
Description
1. Metal shell encapsulation, dry resin infusion;
2. Copper nut / screw leads;
3. High-capacity, high power, High voltage;
4. Metallized self-healing film;
5. High ripple current, high dv / dt withstand capability
Film capacitor for low-flying aircraft
Film capacitors for low-flying aircrafts
Will the low-altitude aerocraft be the next most popular means of transportation?
The development of busbar film capacitors specifically designed for aerocraft applications represents a significant advancement in the field of low-altitude e-aviation.

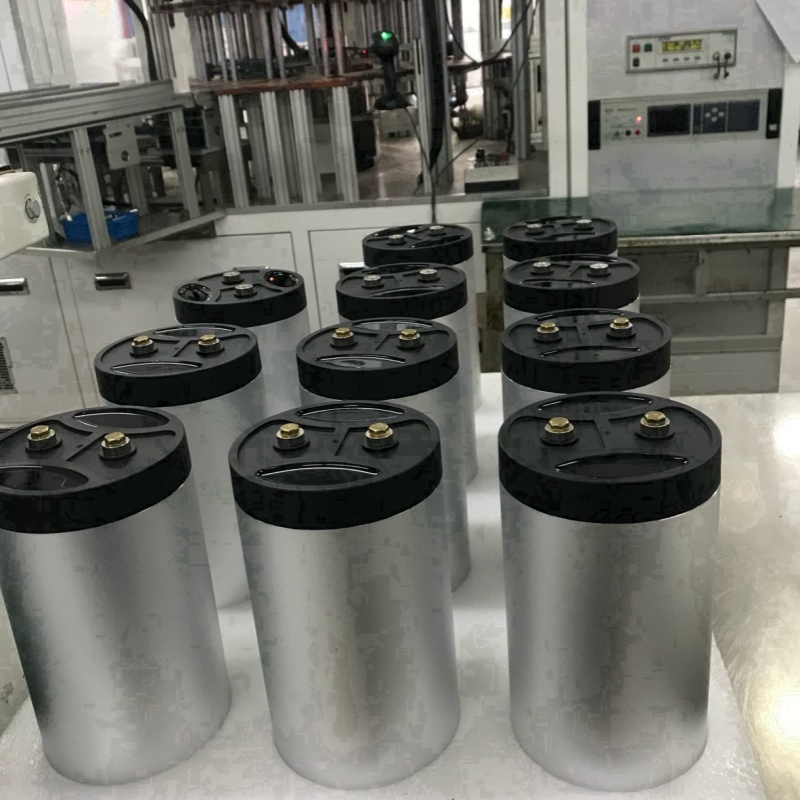

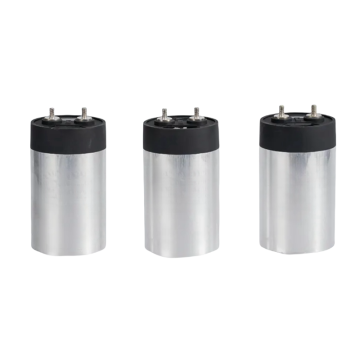

Film Capacitor Featured High Ripple Current
Description
1.Aluminum coloumn shell, dry epoxy infusion
2.Insulated plastic positioning cover with good sealing
3.Metalzied self-healing film
4.Capable of High ripple current, high dv / dt withstand
PCB mounting Plastic film capacitor with high temperature resistant
Introduction
1.Plastic square case with dry type epoxy perfusion
2.Tinned copper wire electrode leads, 2pins/4pins/6pins/12pins available
3.low ESL and ESR
4.High pulse current stand capability
5.high temperature resistant, 105C available
