Water Cooled Capacitor for Intermediate Frequency Induction Furnace
intermediate frequency induction furnace
750VAC 2000Kvar 1Khz capacitor cabinet used in 3T induction melting capacitor
Single cooling water tube design, the capacitor shell is non-insulated design because the capacitor cabinet is insulated.

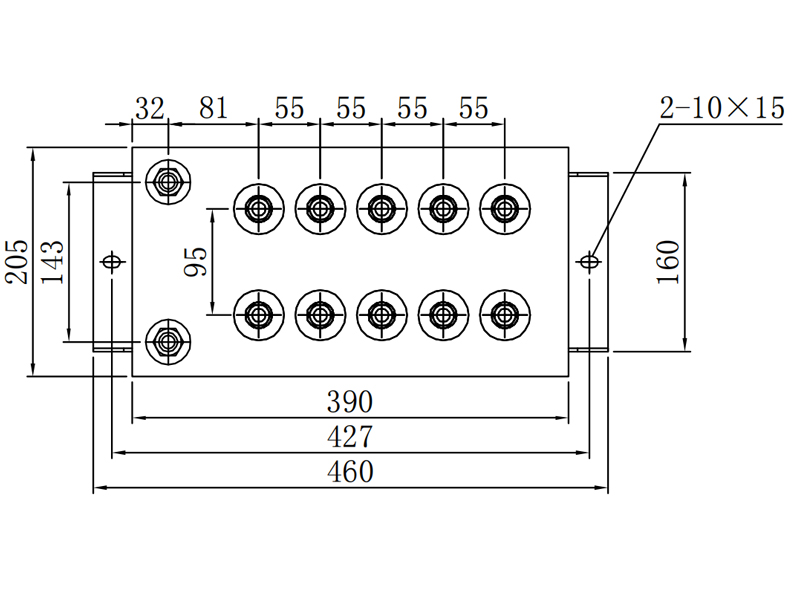

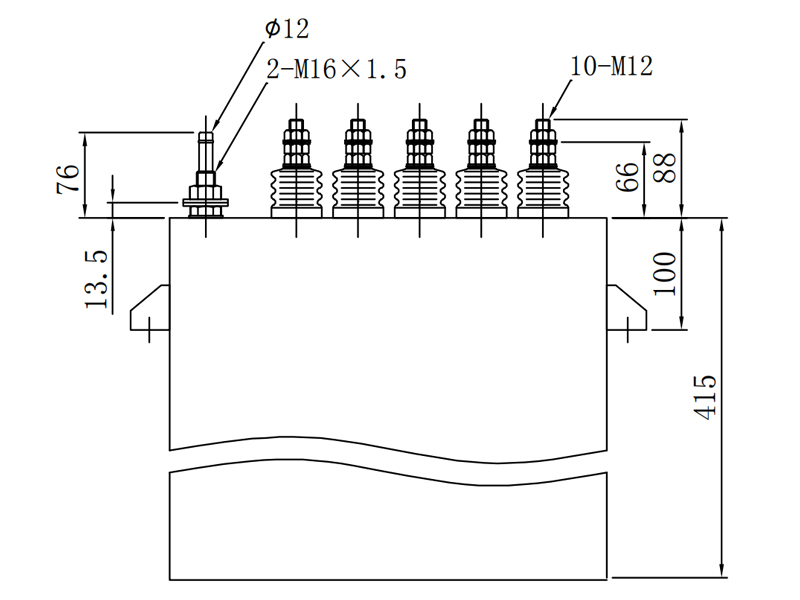

RFM 0.75-2000-1S capacitors
| Technical spec | Rated value |
| Rated voltage (UN Kv) | 0.75（AC） |
| Rated Capacity (QN Kvar) | 2000 |
| Capacitance (CN uf) | 565.9 |
| Frequency （fN Khz） | 1 |
| Current In(A) | 2667 |
| Shell | Non-insulated |
| Nos of Cooling tube | 1 |
| Cooling Water flow rate | ≥8L/min |
| Water temperature | ≤35℃ |
| Capacitance tolerance | +10/-5% |
| Material of shell | Aluminium |
| Terminals | Porcelain Insulator |
| Max. Tightening Torque | 15N m |
| Filling insulation oil | PEPE(non-PCB) |
| Capacitor standard | GB/T3984.1-2004/IEC60110-1:1998 |
| Terminal | Capacitance |
| C-1 | 56.6uf |
| C-2 | 56.6uf |
| C-3 | 56.6uf |
| C-4 | 56.6uf |
| C-5 | 56.6uf |
| C-6 | 56.6uf |
| C-7 | 56.6uf |
| C-8 | 56.6uf |
| C-9 | 56.6uf |
| C-10 | 56.6uf |
 |
|
