Flair Solutions
3000Hz capacitor for intermediate frequency furnace
1000VAC 1508Kvar 80mfd 3000Hz water-cooling capacitor for intermediate frequency furnace；
Cooling method: water cooling
Flow rate of cooling water: 6L/Min
10Khz Electric heating capacitor for high-frequency induction heating application
High-quality electric heating capacitor for high-frequency induction heating application;

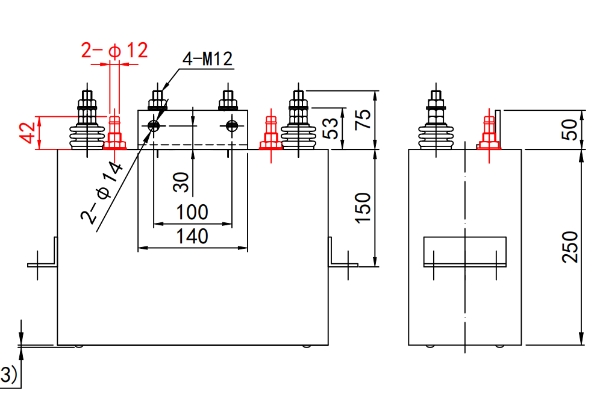

Resonant water cooled capacitor for induction furnace
Resonant water cooled capacitor for induction furnace
Here is a custom water cooled capacitor model Model: RFM1.7-908-2S with rated voltage1700VAC 908Kvar 25mfd 2KHz
Parallel resonant water-cooled capacitor bank designed for induction heating/melting furnaces.
It is a polypropylene film dielectric capacitor, immersed with biodegradable insulation oil sealed in a metal case.
Power Capacitor for induction forging heating treatment
Personalized Water cooled capacitor installed in induction heating/melting/forging furnaces.
Here is a typical example( Model: RFM1.0-2000-1S):
1000VAC 2000Kvar 318uf 1KHz Power capacitor designed for induction heating furnace;
It is all-film dielectric capacitor, immersed with biodegradable insulation oil.
water cooled capacitor of Induction heating up to 500 Kvar 2500Hz
water cooled capacitor for forging heating furnace with induction heating up 500Kvar 2500hz 375VAC 226mfd 1333A;
A custom capacitor solution for induction heating and melting equipments; we are dedicated to serving customers with advanced technology, high quality, and excellent service.
Model: RFM 0.375-500-2.5S
Water-cooled induction melting capacitor
750VAC 1000Kvar 28.3uf 10Khz water-cooled induction melting capacitor
Model: RFM 0.75-1000-10S
Capacitor bank for midfrequency melting furnace
750VAC 1000Kvar 35.4uf 8000Hz capacitor bank for medium frequency melting furnace;
Model: RFM 0.75-1000-8S
The medium frequency melting furnace utilizes the frequency inductive heating to achieve high-temperature melting in short time. The power capacitors will be applied in the system to improve the circuit and increase power factor.
RFM 0.75-1000-6S water cooling capacitor
RFM-0.75-1000-6S induction furnace capacitor with induction heating up to 1000Kvar 6Khz
Product Standard：GB/T3984.1(Equivalent to IEC60110.1)
750VAC 1000Kvar 6Khz induction Furnace capacitor
750VAC 1000Kvar 6Khz induction Furnace capacitor
Flair developed power capacitor banks for induction heating furnace, offering solutions for high frequency heating.
RFM0.75-1000-2.4 Medium frequency water cooled capacitor
RFM0.75-1000-2.4 Medium frequency water cooled capacitor
750VAC 1000Kvar 2400Hz water-cooled capacitor designed for Medium frequency induction heating furnace.
