Ac Water Cooled Capacitor With Pressure Switch Design
General Information
2800VAC 5000 Kvar 500Hz 203uf water-cooled capacitor with pressure switch design
Model: RFM2.8-5000-0.5S
Product Standard:GB/T3984.1(Equivalent to IEC60110.1)
Reach us for a custom power capacitor bank for high frequency inductive heating power system.
Reach us for a custom power capacitor bank for high frequency inductive heating power system.
Technical data
Items |
Rated Value |
|
Voltage Un(Kv) |
2.8 (AC) |
|
Capacity (Kvar) |
5000 |
|
Capacitance (uf) |
203 |
|
Capacitance tolerance |
+10%~-5% |
|
Frequency (Khz) |
0.5 |
|
Current In(A) |
1786 A |
|
cooling water pipe Nos |
2 |
|
Cooling water flow rate |
≥6L/min |
|
input temperateture |
≦35℃ |
|
Case |
Non-insulated |
|
Case material |
Aluminum Alloy sheet |
|
Terminal studs |
Insulated |
|
Max tightening Torque |
15 N m |
|
Insulation oil |
PEPE(non-PCB) |
|

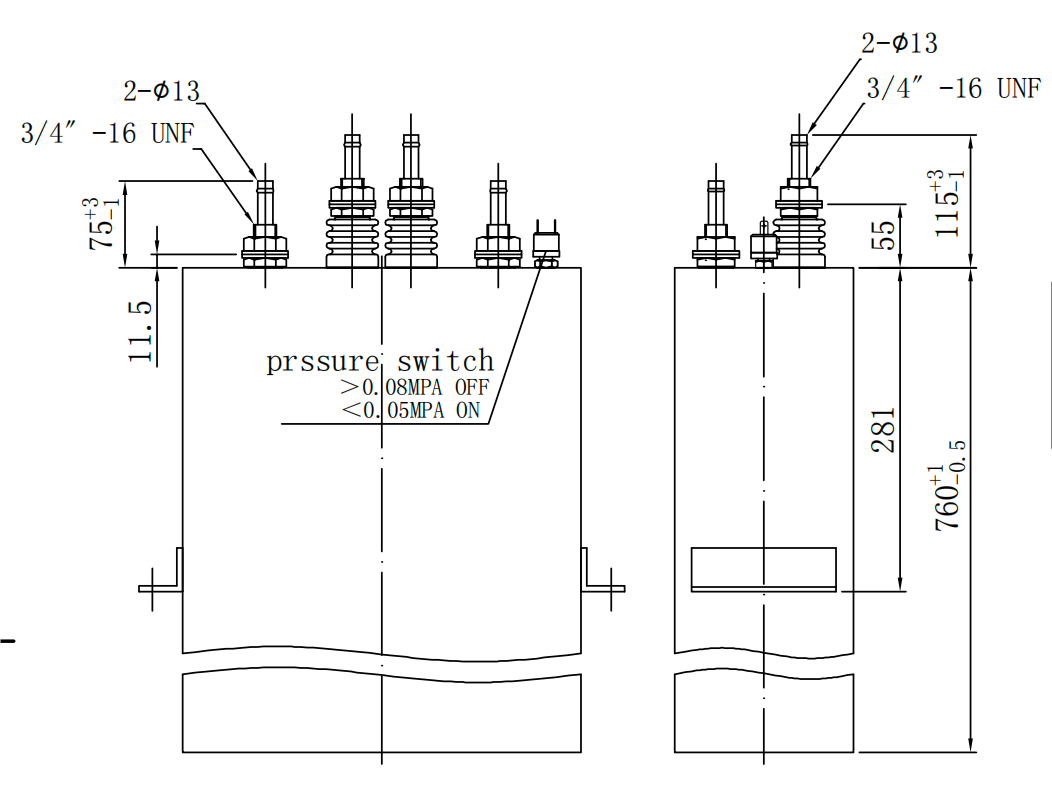

Dimension |
391*206*760mm ±0.3mm (L*W*H) |
