Filter capacitor of induction heating system
7000 microfarad 1200VDC filter capacitor of induction heating equipments
1200Volts 7000 microfarad DC filtering capacitor used for induction heating system. The DC filtering capacitor in induction furnace to tune the circuit and low frequency 50/60 hz.
The filter capacitors help to reduce harmonic and improve power quality. As well as prevent interference with other equipment or the power grid.
Technical data
|
No |
Description |
Unit |
Data |
|
1 |
Rated voltage |
Un |
1200VDC |
|
2 |
Capacity |
Qn (Kvar) |
/ |
|
3 |
Capacitance |
Cn(μF) |
7000μF |
|
4 |
Rated Frequency |
Fn (Khz) |
Line frequency |
|
5 |
Rated current |
In (A) |
3600 |

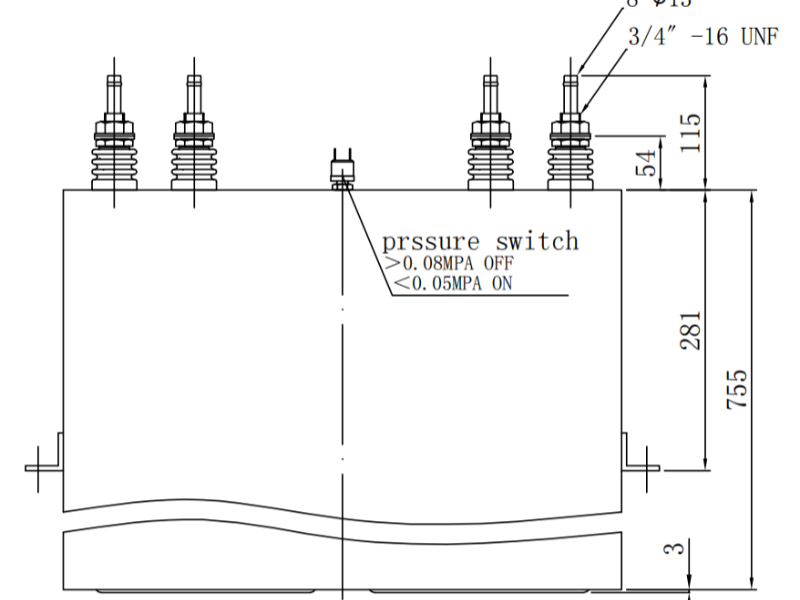

Mechanical parameter
|
No |
Description |
Data |
|
1 |
Dimension |
559*145*755mm |
|
2 |
Case Materials |
Metal |
|
3 |
Terminal studs |
Compound materials |
|
4 |
Max tightening Torque |
18 N m |
|
5 |
Filling |
Insulation oil(Canola oil), non-PCB |
|
6 |
Shell case |
Insulated |
|
7 |
Nos of cooling water tubes |
1 |
|
8 |
Water flow |
≥8L/min |
|
9 |
Output Water temperture |
≦35℃ |
