We develop, produce and sell highly efficient induction heating capacitor banks for a wide variety of induction heating applications, like power factor correction in induction heating, melting, stirring or casting etc. To be a professional electric heating capacitors manufacturer, we are committed to premium quality, reliability and innovation. So that to help reducing foundry melting energy costs with our premium quality induction heating capacitors.

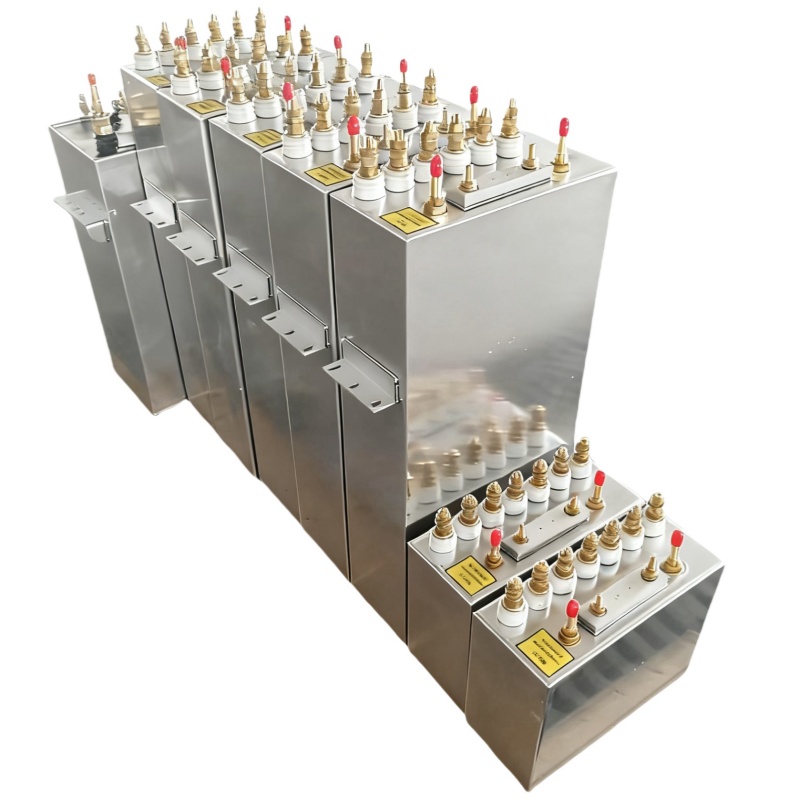

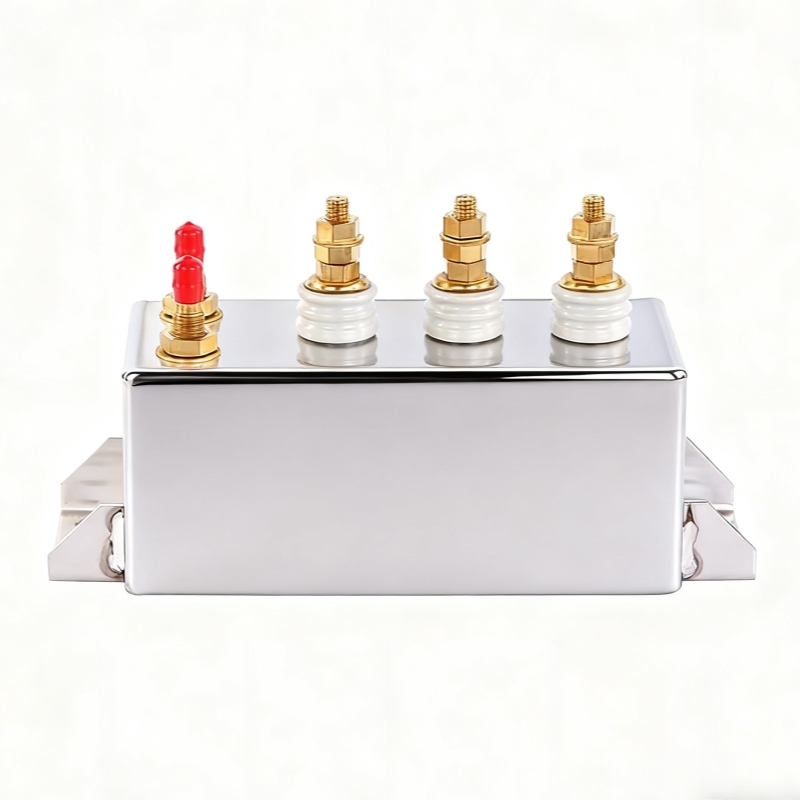

In this section, we are introducing one of our main product series, water-cooled induction heating Capacitors with 700VAC, 1090Kvar, 100hz.

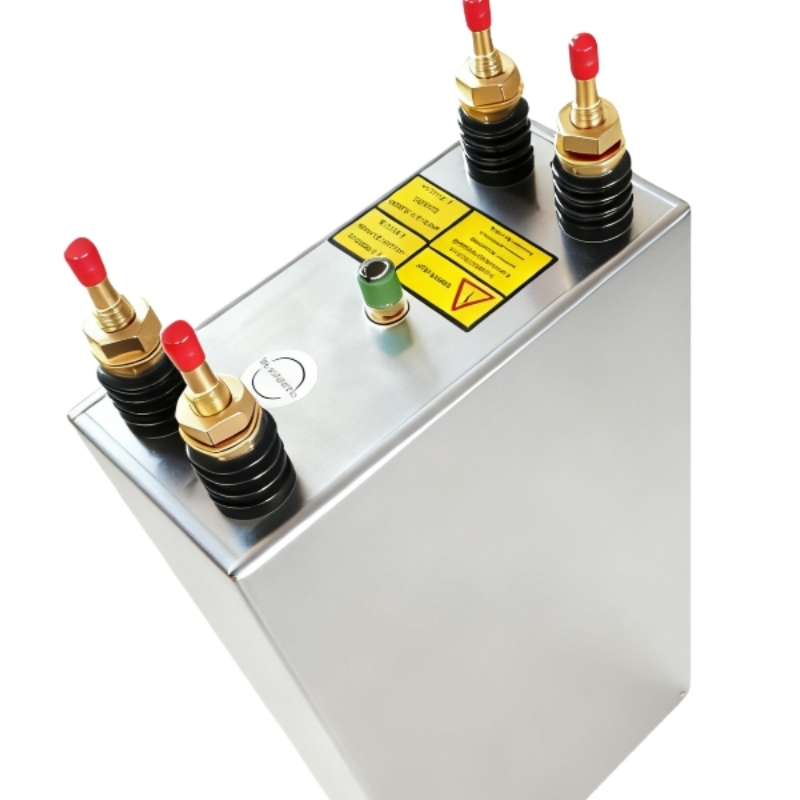

Model: RAM 0.7-1090-0.1S
Reference application scenarios：Electrothermal treatment for copper pipes, capillary copper tubes and coated copper pipes.
Technical parameter
No |
Description |
Unit |
Data |
1 |
Rated voltage(AC) |
Un |
0.7kV |
2 |
Rated frequency |
Fn |
100 Hz |
3 |
Capacity |
Kvar |
1090kvar |
4 |
Capacitance |
Cn |
3540μF (+10%~-5%) |
5 |
Current |
In(A) |
1557A |
6 |
water flow rate |
L/min |
≥8L/min |
7 |
Max.Water temperature |
℃ |
≦40°C |
9 |
Loss |
|
<0.5 W/kvar |
Mechanical Properties and Structure
No |
Description |
Data |
1 |
Case Dimension |
348*241*1010mm (±3mm) |
2 |
Case Materials |
Patterned Aluminium alloy (Non-Magnetic) |
3 |
Terminal conduit |
Compound materials |
4 |
Max tightening Torque |
18N m |
5 |
Dielectric |
All-film |
6 |
Impregnation |
Biodegradable Insulation oil (M/DBT), non-PCB |
7 |
Shell type |
Insulated (Dead case) |
8 |
Cooling method |
Water-cooling |
9 |
Built-in water tubes Nos |
2 |
10 |
Protection |
Pressure Switch; ＞0.08MPA off； ＜0.05MPA on |

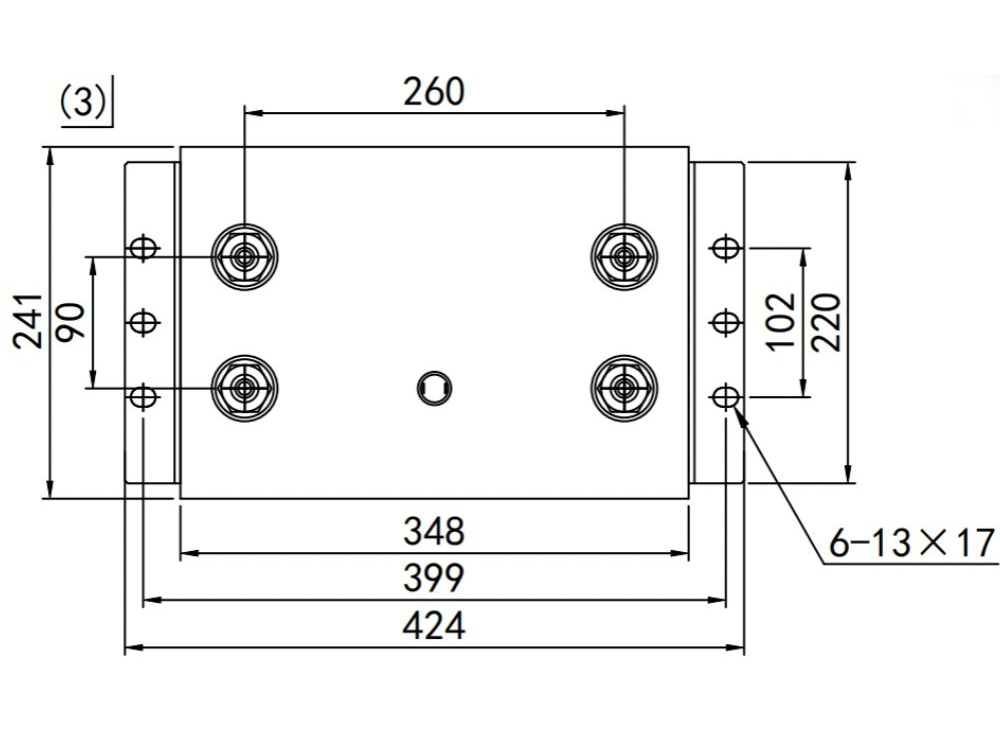

Outline Drawing
