1. Overview

High Voltage Shunt Capacitor Banks are one of the most important reactive power compensation devices in electrical substations. The main connection diagram refers to the electrical arrangement between the capacitor bank and associated equipment such as: Busbars, Circuit breakers, Disconnect switches , Current transformers (CTs) , Voltage transformers (VTs/PTs) , Series reactors , Surge arresters , Protection and control systems.
A properly designed capacitor bank connection diagram directly impacts the System reliability, Protection sensitivity, Operational flexibility, Harmonic performance and maintenance costs. Depending on system voltage level, capacitor bank rating, harmonic conditions, and protection requirements, the most common connection configurations include:

• Single Wye (Single Star) Connection capacitor
• Double Wye (Double Star) Connection capacitor
• Bridge Differential Connection capacitor
• H-Bridge Connection capacitor

Modern substations also require proper integration of series reactors, harmonic filtering equipment, and intelligent monitoring systems.
Capacitor design principles: Ensure adequate reactive power delivery while suppressing inrush currents, avoiding harmonic amplification, maintaining highly sensitive unbalance protection, and ensuring a safe, visible isolation point for routine maintenance.

2. Engineering Design Principles and requirements

According to industry standards IEC 60871 and GB/T 30846-2014(Technical conditions for high-voltage shunt capacitor installations), The primary wiring must adhere to the following benchmarks:

• Reliability:The configuration must be straightforward and minimize potential failure points. For critical load-center substations, you may consider double-bus arrangement, breaker-and-a-half schemes, or redundant switching arrangements.
• Operational Flexibility: It must allow seamless switching (energization/de-energization) based on real-time grid reactive power demands. A clear, visible air-break separation point via disconnect switches must be provided. Beside of the easy maintenance isolation, also in consideration of future expansion.
• Comprehensive Protection: The primary circuit layout must accommodate internal fault protection—such as neutral unbalance current or zero-sequence unbalance voltage protection—alongside standard backup protection, like over-current, over-voltage, under-voltage/loss-of-voltage, and harmonic overload protection
• Harmonic and Inrush current limitation :Series reactors are installed to limit switching inrush current, prevent harmonic amplification, and avoid resonance with power system. The reactance rate must be precisely engineered according to background harmonic measurements. Typically, a 4.5% ~6% reactor is deployed to suppress the 5th and higher harmonics, while a 12%~13% reactor is utilized if the 3rd harmonic is dominant.

• Economic Efficiency:The design should achieve required reactive power compensation performance while minimizing the total installation area and construction cost without compromising safety margins or performance metrics.

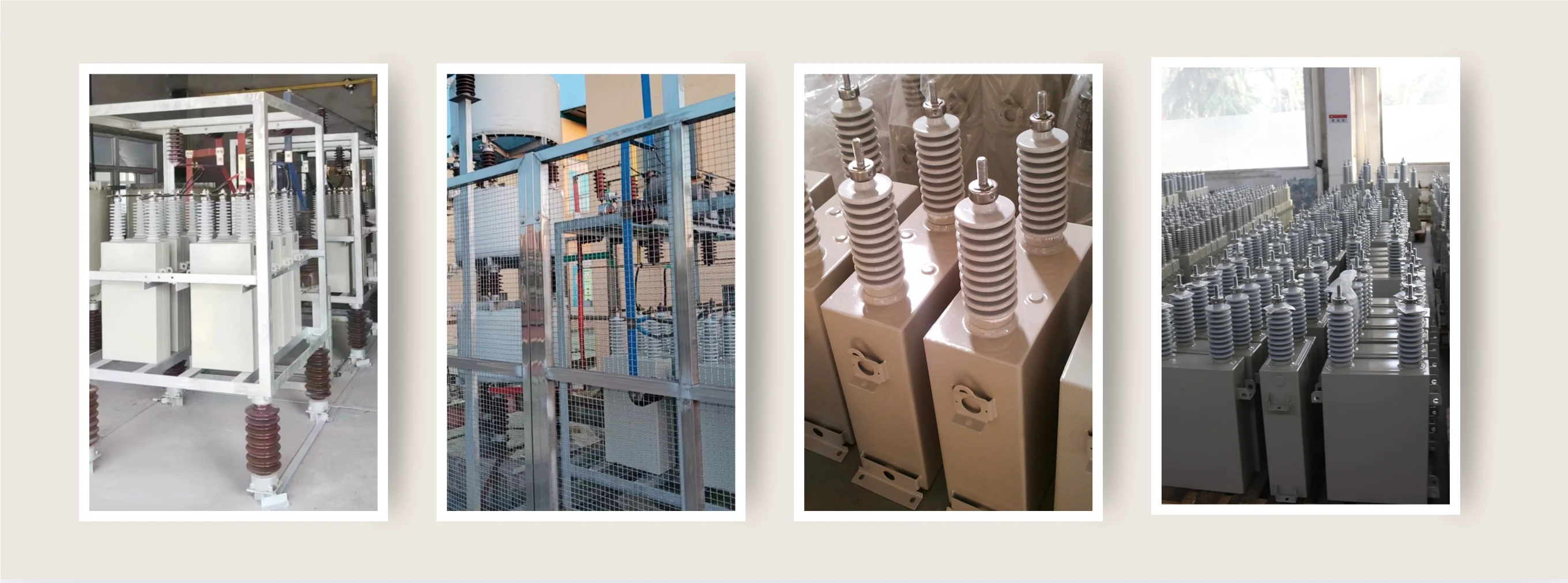

3. Typical Capacitor Connection diagram

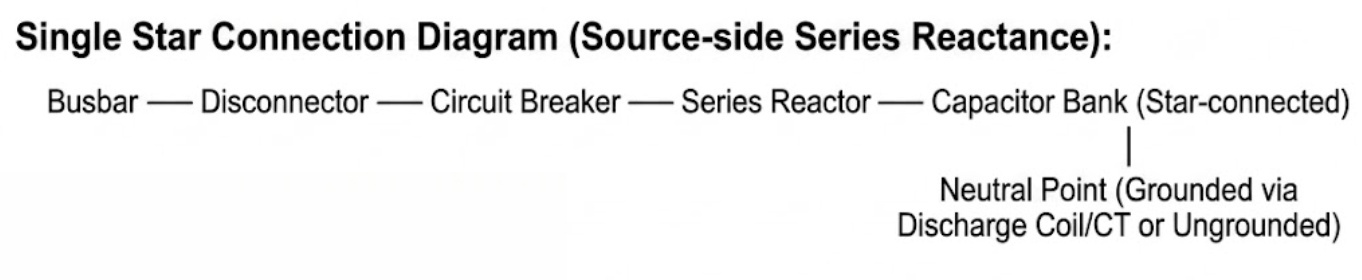

3.1 Single Wye (Single Star) Connection

What is single Wye connection capacitor bank?

In a single-star connection, multiple capacitor units are connected in parallel to achieve the designed capacitance and then strung in series per phase to meet voltage ratings, meeting at a single neutral point. This neutral point is insulated from the ground or grounded exclusively via a discharge coil or a current transformer (CT).

• Protection Scheme:Usually utilizes Broken-Delta (Open-Delta) Unbalance Voltage Protection (sourced from the secondary side of the discharge coils) or Neutral Unbalance Current Protection.
• Advantages:Simple design, Lower cost, Smaller footprint, Easier installation
• Disadvantages:Lower sensitivity for capacitor internal fault detection, protection sensitivity is slightly lower than that of the double-star type capacitor.
• Typical Applications: Single star connection widely used in 10 kV substations and 35 kV substations, adopt to substations with medium and small capacity and relatively light harmonic, In situations where the requirement for protection sensitivity is not extremely strict. It is often used in pairs with a 5% reactor to suppress inrush current. Its application scope mainly depends on the combination mode of capacitor units, unbalance protection requirements, and rated voltage.
• Typical rating reference: 1 Mvar ~ 12 Mvar Wye connection capacitor bank for 10KV power system; 5 Mvar ~ 30 Mvar Wye connection capacitor bank for 35kV power system.

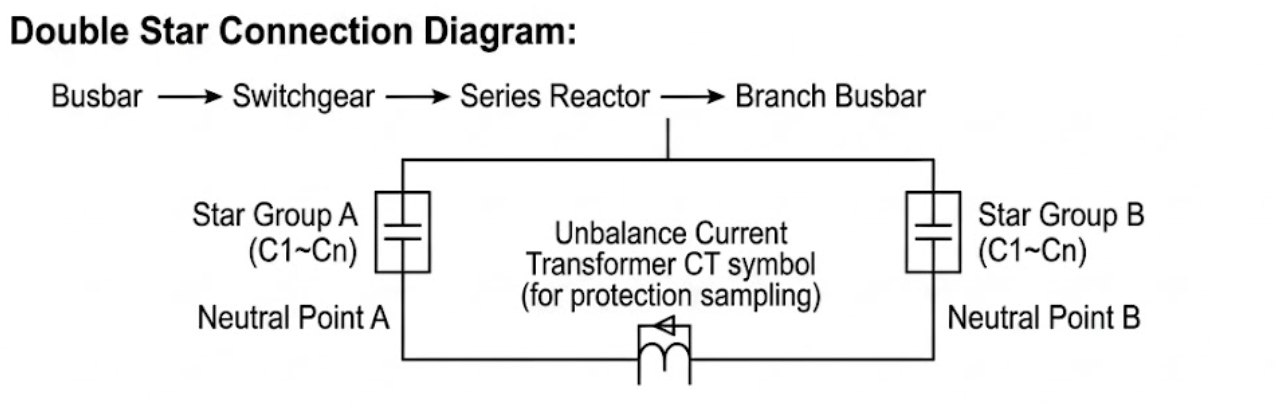

3.2 Double-Star Wiring (Y-Y Connection)

What is double-star connection capacitor bank?

Two star-connection capacitor banks are connected in parallel to the same busbar. An unbalance current transformer (Neutral CT) bridges the two distinct neutral points.
                      CT (current transformer)
N1 ------------------------------------||---------------------------------- N2
Star A                                                                           Star B

Protection Scheme: Under normal balanced conditions, the vector sum of currents flowing between the two neutral points is practically zero. If an internal element in any branch punctures, the balance breaks down, and a circulating current flows through the neutral CT, instantly triggering the protection relay to trip the main breaker. The double star connection has high protection sensitivity and can effectively reflect the breakdown of internal components of the capacitor. It widely used in 6kV~35kV medium/high voltage large capacity capacitor bank installations.
Advantages: Double-star connection has high protection sensitivity, reliable fault detection. It accurately identifies specific capacitor element failures before a catastrophic cascade breakdown occurs, making it highly robust for installations that experience high switching frequencies.
Disadvantages: Requires a symmetrical layout and large installation area, and demands a larger quantity of devices.
Typical Application: With larger individual bank capacities, it heavily utilized in medium-to-high voltage systems 6kV~35kV substations, utility substations, industrial substations. When the number of capacitor bank units is large and the requirements for internal component fault detection are high, double star connection is usually preferred.
Typical rating: 3Mvar~50Mvar; Such as 3Mvar/4Mvar double-star connection capacitor bank for 10kV power system.

3.3 Bridge-Differential Connection

What is bridge differential connection capacitor bank?

The capacitor units are arranged into four distinct electrical sections which forming an bridge circuit, with a sensitive current transformer placed across the bridge's diagonal line.
Protection Scheme: Under balanced operations, the potential difference across the bridge diagonal is zero, yielding no current. An internal fault in any section shifts the bridge impedance, causing a differential current to pass through the CT and drive the protection system.
Advantages: It features extremely sensitive protection, excellent fault discrimination and is completely decoupled from system harmonic currents and external unbalance voltages, thus minimal influence from system harmonics
Disadvantages: Highly intricate physical layout, requires intensive structural engineering and higher installation cost, and demands massive finance invest and more difficult maintenance.
Typical Applications: Bridge-type differential connection capacitor bank primarily deployed in sub-transmission and transmission networks such as 66kV, 110kV, 330kV etc which is featuring massive reactive power requirements. It is also adopted in ultra-high voltage (UHV) substations, and when combined with thyristor-controlled series compensation or fixed capacitors, it adapts to the complex operating conditions of the power grid.

3.4 H-bridge connection and Advanced Hybrid connection

What is H-bridge connection capacitor bank?

The H-shaped connection capacitor bank is essentially composed of two single-star or double-star capacitors combined through a special circuit breaker, which is used for parallel segmentation of multiple capacitor banks, thereby enhancing the flexibility of staged switching, as well as enabling localized protection.
In addition, for 10kV distribution networks, a single-star connection with an internal fuse and an external fuse combination is often adopted to enhance the fault isolation capability. The main wiring also needs to fully consider the installation position of the series reactor - the series reactor on the power supply side can suppress inrush current and high-order harmonics from flowing into the capacitor, and has high requirements for the insulation of the reactor. The neutral point side series reactance can reduce the insulation level of the reactor to ground and save costs, but its effect in suppressing harmonics is slightly weaker.
Advantages: Excellent unbalance protection, high fault sensitivity, suitable for large capacitor banks
Typical application: 110kV substations, 220kV substation, EHV substations etc

4.Series Reactors configuration

Series reactors are essential components in modern capacitor bank cabinet. Series reactors are an indispensable part of the main wiring. According to the connection position, it is divided into: in-phase series reactance (connected at the beginning of the capacitor bank) and neutral point side series reactance. In-phase series reactance can completely suppress inrush current and harmonic amplification, but the reactor needs to withstand phase voltage. The neutral point side series reactance only needs to withstand unbalanced voltage and has a relatively low cost, but its effect in restricting inrush current is relatively weak. The relative positions of the reactor and the capacitor bank must be indicated in the main wiring diagram, and they need to be coordinated with the discharge coil and the lightning arrester.

Typical wiring: busbar side - circuit breaker - disconnect switch - series reactor - capacitor bank - neutral point equipment (discharge coil/lightning arrester).

Typical single line installation sequence:

Busbar
  |
Circuit Breaker
  |
Disconnect Switch
  |
Series Reactor
  |
Capacitor Bank
  |
Neutral Equipment

Reference for selecting different reactance rates

Functions of Series Reactors
Inrush Current Limitation: Capacitor switching can produce inrush currents exceeding: 20–30 times rated current. The reactor limits these transient currents.
Harmonic Suppression: Reactor-capacitor combinations create a detuned system, preventing resonance with utility harmonics.
Protection of Capacitor Units: The reactor reduces Harmonic current stress, Thermal stress and Dielectric stress

5. Primary Auxiliary Equipment Functions

A complete set of high-voltage shunt capacitor devices requires following auxiliary apparatus to work alongside the capacitors and reactors:
Circuit Breaker / Load Break Switch: The central operational asset. It must be specifically rated for switching capacitive currents without restrike, which could cause devastating over-voltages.
Disconnector / Isolation Switch: Provides a visible air gap to verify safe isolation during physical substation inspections.
Surge Arrester: Typically Metal-Oxide Surge Arresters deployed immediately adjacent to the capacitor terminals to clamp high-frequency switching or lightning transients.
Discharge Coil / Voltage Transformer: When the capacitor bank is disconnected, the residual charge stored in the capacitors must be safely drained. The discharge coils must bleed down the residual peak voltage to less than 75/50 V within 10/5 min to ensure human safety, while its secondary windings handle voltage metering.
Grounding Switch: Mechanically shorts the capacitor terminals to the substation grounding grid prior to physical maintenance.

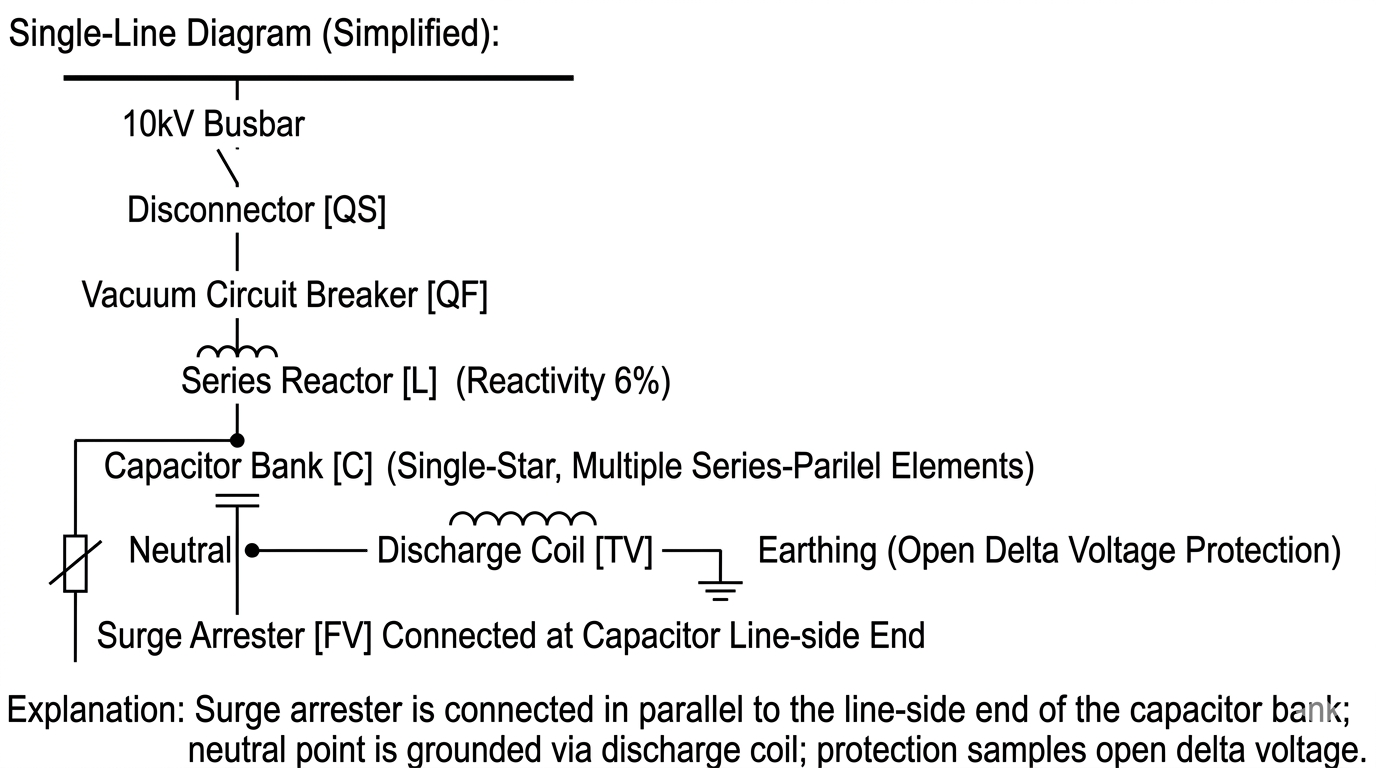

Typical 10KV capacitor bank device connection (Single-star+Neutral point unbalanced voltage protection)

6. Protection Configuration & Interlocking Control

Single Wye Protection: Generally, open delta voltage protection (neutral point side PT secondary side) is adopted, which has a relatively high sensitivity and easily detect breakdown faults of internal components of capacitors.
Double Wye Protection: It uses Neutral current unbalance protection which is simple setting calculations and high sensitive.  Bridge Differential Protection: It uses differential current protection which featured stable operation, high security, fast fault clearing.
Backup protections are uniformly applied across all typologies to protect against system-level anomalies:

• Over-current Protection: Instantaneous Short-Circuit Definite-Time Protection plus Inverse-Time Delayed Over-current Protection via line CTs.
• Voltage Protection: Definite-time over-voltage protection (to prevent dielectric stress on the capacitor films) and under-voltage/loss-of-voltage tripping (to prevent re-energizing fully charged capacitors when grid power returns).
• Under-voltage protection: prevents improper re-connection
• Harmonic overload protection: protects against excessive harmonic currents

In addition, to prevent the re-ignition over-voltage of the capacitor bank, the main wiring is often equipped with a zinc oxide arrester, which should be installed as close as possible to the capacitor bank. At the same time, the anti-misoperation logic of "closing the disconnect switch first, then the circuit breaker" must be met.

Recommended Capacitor bank Connection by Voltage Level

7. Smart substation trends

With the development of smart substations, the main connection wiring of high-voltage shunt capacitor installations is increasingly integrating electronic instrument transformers, intelligent terminals, and merging units to enable remote control and condition monitoring. The coordination of circuit breakers and disconnectors—utilizing "one-touch" sequential control technology—enhances operational efficiency. Furthermore, to mitigate resonance risks associated with high-order harmonics and the integration of new energy sources, filtering branches or adjustable reactors can be incorporated into the main wiring to further improve reliability. In summary, the main connection wiring of high-voltage shunt capacitor installations is a core component of substation reactive power compensation design; designers should comprehensively consider voltage levels, system short-circuit capacity, harmonic conditions, protection schemes, and cost-effectiveness to select appropriate configurations—such as single-star, double-star, or bridge-differential connections—and properly configure series reactors, switchgear, and protection devices, ultimately achieving safe, efficient, and intelligent reactive power compensation.

Modern capacitor banks are evolving toward intelligent operation.

Online Condition Monitoring: 1.Capacitor current 2.Capacitor temperature 3.Harmonic 4.content Neutral unbalance 5. Intelligent Protection Relays

Smart Control: 1. Self-diagnostics 2.Remote setting 3.Event recording

Digital Substation Integration: Merging units, SCADA systems

Dynamic Reactive Compensation: Integration with: SVC (Static Var Compensator).STATCOM systems.

8. Conclusion

The main connection scheme of a High Voltage Shunt Capacitor Bank is a critical aspect of substation reactive power compensation design. Selection among Single Wye, Double Wye, Bridge Differential, and H-Bridge configurations should be based on:

Voltage level, Reactive power demand, Harmonic conditions, Protection requirements , Reliability objectives, Economic considerations.
In modern utility substations, Double Wye connection capacitor combined with 5%–6% detuning reactors have become the most widely adopted solution, while H-Bridge schemes are increasingly used for large-capacity and extra-high-voltage applications.
Proper coordination of capacitor banks, series reactors, surge arresters, protection relays, and intelligent monitoring systems ensures safe, reliable, and efficient reactive power compensation throughout the power network.
