PCB mounting Plastic film capacitor with high temperature resistant

Introduction
1.Plastic square case with dry type epoxy perfusion
2.Tinned copper wire electrode leads, 2pins/4pins/6pins/12pins available
3.low ESL and ESR
4.High pulse current stand capability
5.high temperature resistant, 105C available

product details

Application

1.Widely mounted in DC-Link circuit PCB;

2.PV inverter,

3.Automotive

4.UPS

5.Various of Industrial power electronics

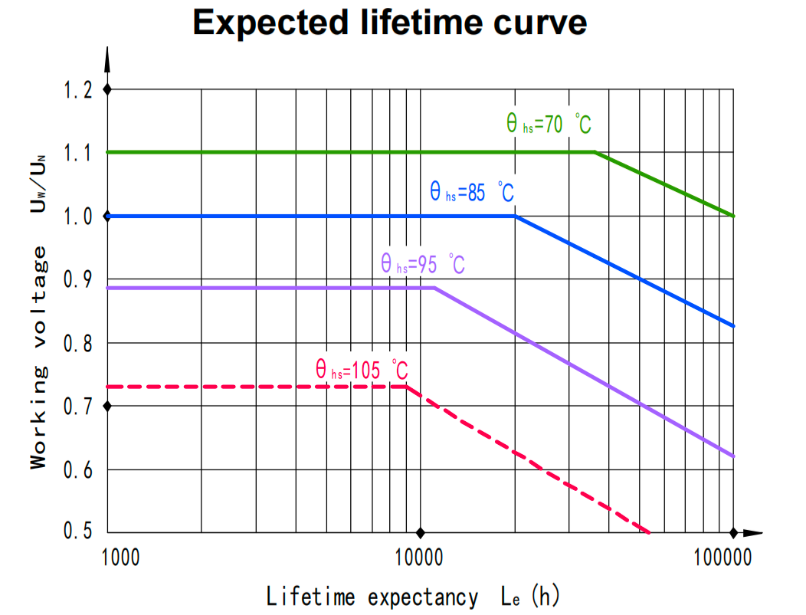

Life expectancy

Technical data

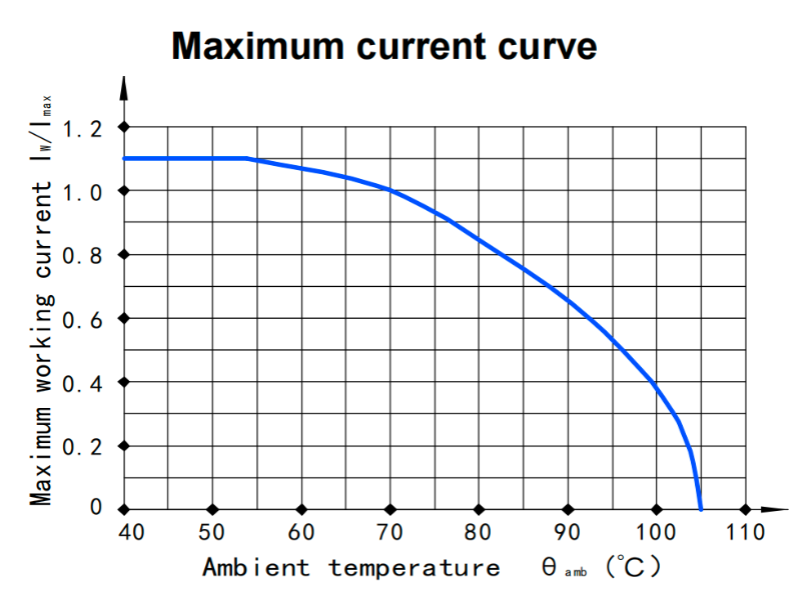

Operating temperature	-40℃~105℃
Rated voltage (U_N)	400VDC～2000VDC
capacitance range(C_N)	0.68μF～200μF (±5% / ±10%)
Withstand voltage	1.5U_N DC/60S
Insulation resistance	IR*C_N≥10000S (60s, 20±5℃,100V. DC)
Over Voltage	1.1U_N(30% of on-load-duration)
	1.15U_N(30min/day)
	1.2U_N(5min/day)
	1.3U_N(1min/day)
	1.5U_N(100ms every time, 1000 times during the lifetime)
Dissipation factor	tgδ≤0.0015 f=100Hz
Flame retardation	UL94V-0
Reference standard	IEC 61071
Custom-design	upon request

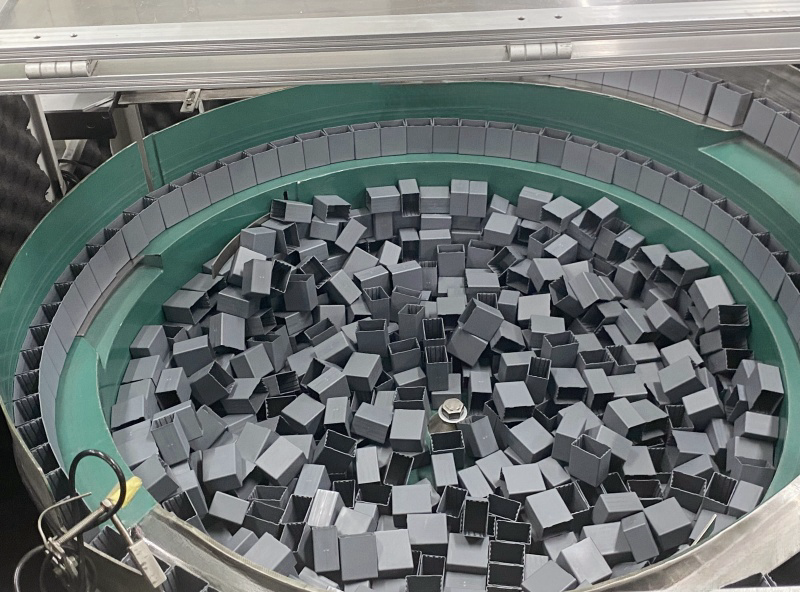

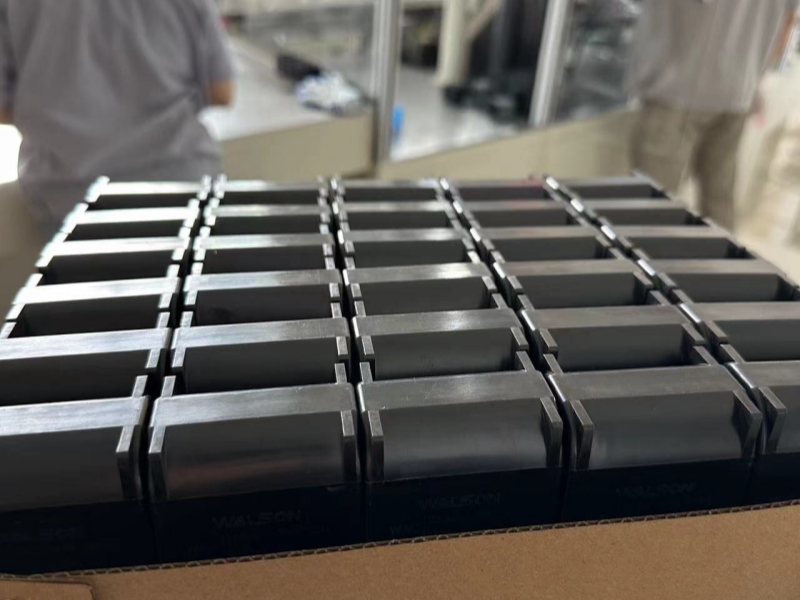

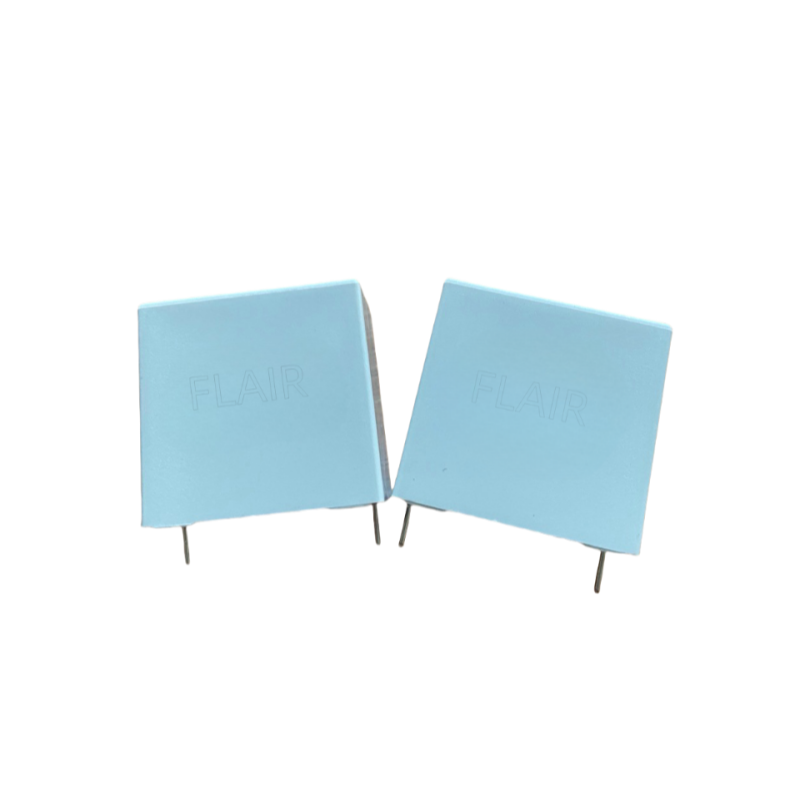

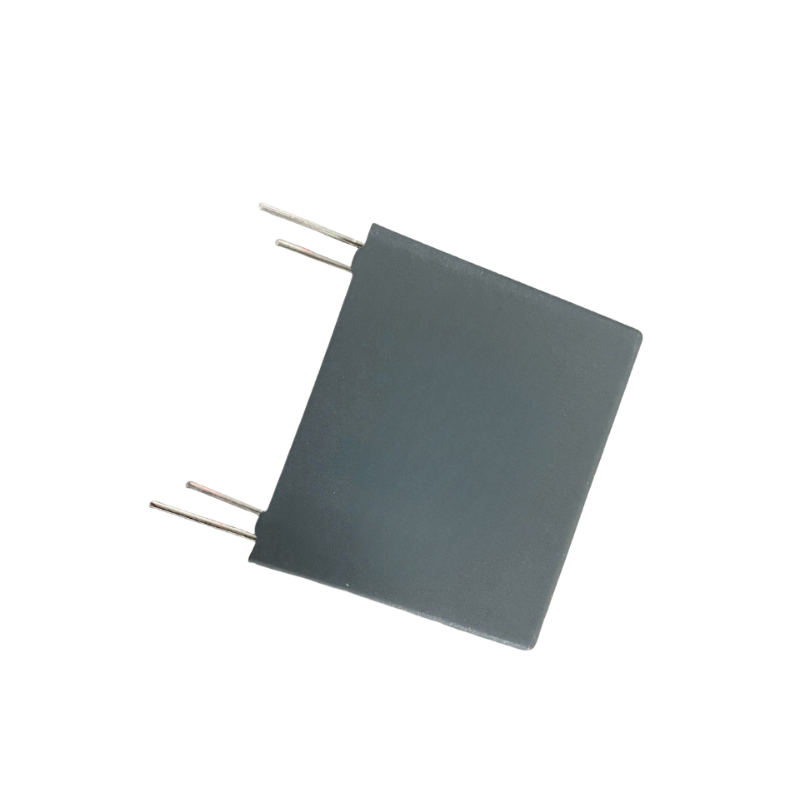

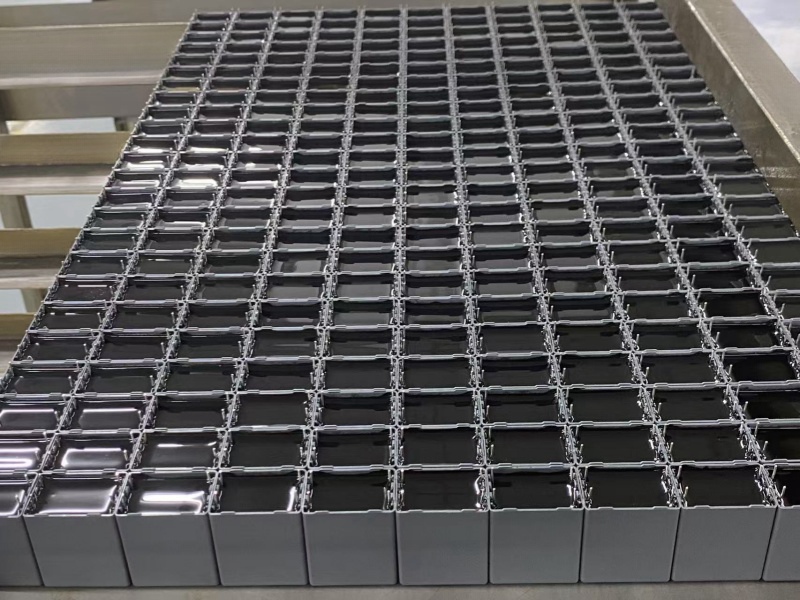

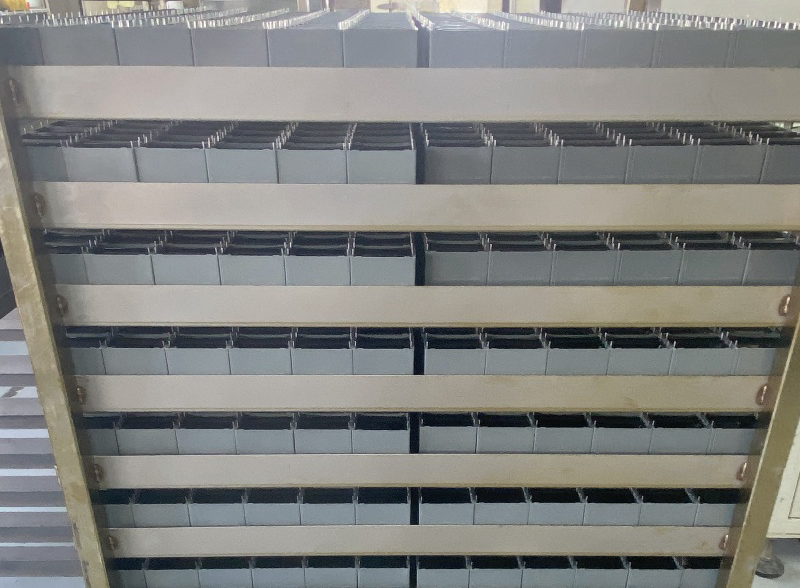

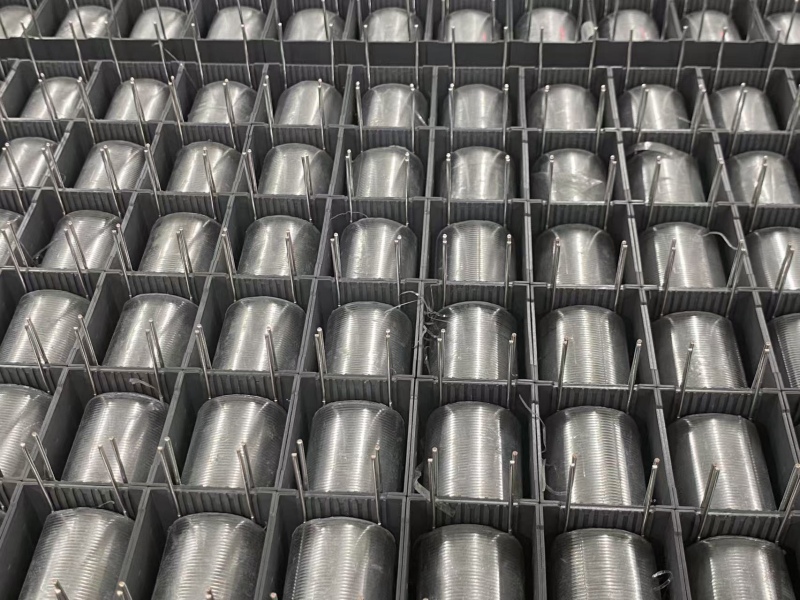

Reference photos

Specification Sheet

No	Rated voltage Un(VDC)	CN(μF)	W±1.0(mm)	H±1.0(mm)	T±1.0(mm)	P±0.5(mm)	P2(b)±0.5(mm)	d(mm)	dV/dt(V/μ s)	tan δ(10-4)1Khz	RESR @10kHz (mΩ)	lrms(A) 85℃
1	UN85°C=500Vdc	5	32	20	11	27.5		0.8	65	10	8.5	5
2		10	32	28	14	27.5		0.8	65	10	7.5	6.5
3		22	32	37	22	27.5		0.8	65	10	5	10
4		30	42	40	20	37.5	10.2	1	30	15	8	12.5
5		35	42	37	22	37.5	10.2	1	30	15	8	13.5
6		40	42	44	24	37.5	10.2	1	30	15	5	14.5
7		50	42	45	30	37.5	20.3	1.2	30	15	4	16
8		60	42	45	30	37.5	20.3	1.2	30	15	3	16.5
9		75	57.5	45	30	52.5	20.3	1.2	15	35	5.5	16
10		80	57.5	45	30	52.5	20.3	1.2	15	35	5	16.5
11		100	57.5	50	35	52.5	20.3	1.2	15	35	4	18
12		110	57.5	50	35	52.5	20.3	1.2	15	35	4	19
13	UN85°C=600Vdc	2	32	18	9	27.5		0.8	65	11	47.8	2.8
14		3	32	20	11	27.5		0.8	65	11	31.8	4.1
15		4	32	20	11	27.5		0.8	65	11	23.9	5.5
16		5	32	22	13	27.5		0.8	65	11	19.1	6.9
17		6	32	25	14	27.5		0.8	65	11	18.6	7.1
18		7	32	28	14	27.5		0.8	65	11	15.9	8.3
19		8	32	28	14	27.5		0.8	65	11	139	9.5
20		9	32	28	18	27.5		0.8	65	11	12.4	10.7
21		10	32	30	16	27.5		0.8	65	11	11.1	11
22		10	32	30	18	27.5		0.8	65	11	11.1	11
23		12	32	33	18	27.5		0.8	65	11	10.8	12
24		15	32	37	22	27.5		0.8	65	11	9	12
25		15	32	37	22	27.5	10.2	0.8	65	11	7.4	16.5
26		18	32	37	22	27.5		0.8	65	11	8	12
27		18	32	37	22	27.5	10.2	0.8	65	11	6.2	17
28		10	41.5	30	16	37.5		1	30	20	19.5	6.2
29		12	41.5	30	16	37.5		1	30	20	16.3	7.4
30		15	41.5	34	19	37.5		1	30	20	13	9.2
31		20	42	40	20	37.5	10.2	1	30	20	9.8	12.3
32		22	42	40	20	37.5	10.2	1	30	20	8.9	13.5
33		25	42	40	20	37.5	10.2	1	30	20	7.8	15.4
34		30	42	44	24	37.5	10.2	1	30	20	6.8	17.5
35		35	42	45	30	37.5	20.3	1.2	30	20	6	20.1
36		40	42	45	30	37.5	20.3	1.2	30	20	5.2	23
37		45	42	50	35	37.5	20.3	1.2	30	20	4.6	25.8
38		50	42	50	35	37.5	20.3	1.2	30	20	4.2	28.7
39		55	42	50	35	37.5	20.3	1.2	30	20	3.8	31.6
40		60	42	55	40	37.5	20.3	1.2	30	20	3.5	34.5
41		65	42	55	40	37.5	20.3	1.2	30	20	3.2	35
42		70	42	55	40	37.5	20.3	1.2	30	20	3	35
43		75	42	60	45	37.5	20.3	1.2	30	20	2.8	35
44		80	42	60	45	37.5	20.3	1.2	30	20	2.6	35
45		85	42	60	45	37.5	20.3	1.2	30	20	2.5	35
46		55	57.5	45	30	52.5	20.3	1.2	15	36	7.1	16.9
47		60	57.5	45	30	52.5	20.3	1.2	15	36	6.5	18.5
48		65	57.5	50	35	52.5	20.3	1.2	15	36	6	20
49		70	57.5	50	35	52.5	20.3	1.2	15	36	5.6	21.5
50		75	57.5	50	35	52.5	20.3	1.2	15	36	5.2	23.1
51		80	57.5	50	35	52.5	20.3	1.2	15	36	4.9	24.6
52		85	57.5	55	45	52.5	20.3	1.2	15	36	4.8	25.1
53		90	57.5	55	45	52.5	20.3	1.2	15	36	4.6	25.8
54		95	57.5	55	45	52.5	20.3	1.2	15	36	4.4	27.3
55		100	57.5	55	45	52.5	20.3	1.2	15	36	4.2	28.7
56		110	57.5	55	45	52.5	20.3	1.2	15	36	3.8	31.6
57		110	57.5	55	45	52.5	20.3	1.2	15	36	3.8	31.6
58		120	57.5	65	45	52.5	20.3	1.2	15	36	3.5	34.5
59		130	57.5	65	45	52.5	20.3	1.2	15	36	3.2	35
60		140	57.5	65	45	52.5	20.3	1.2	15	36	3	35
61	UN 85℃=700Vdc	3	32	21	11	27.5		0.8	75	10	23	4
62		5	32	25	15	27.5		0.8	75	10	14	6
63		8	32	28	18	27.5		1	75	10	8.5	8.5
64		10	42.5	27.5	24.5	37.5		1.2	40	10	10	10
65		20	42.5	44	24	37.5	20.3	1.2	40	10	7.5	12
66		25	42.5	37	29	37.5	20.3	1.2	40	10	6	12
67		40	42.5	45	33	37.5	20.3	1.2	40	10	5.5	13
68		45	42.5	50	35	37.5	20.3	1.2	40	10	5	15
69		50	57.5	45	30	52.5	20.3	1.2	20	15	5.5	18
70		55	57.5	55	40	37.5	20.3	1.2	40	10	4.5	18
71		60	57.5	50	35	52.5	20.3	1.2	20	15	5	20
72		75	57.5	50	35	52.5	20.3	1.2	20	15	4.5	22
73		80	57.5	54	38	52.5	20.3	1.2	20	15	4	22
74		90	57.5	56	42.5	52.5	20.3	1.2	20	15	3.5	25
75		100	57.5	55	45	52.5	20.3	1.2	20	15	3.2	27.5
76		110	57.5	65	45	52.5	20.3	1.2	20	15	3	28
77	UN85°C=800Vdc	2	32	18	9	27.5		0.8	65	10	45.4	2.9
78		3	32	20	11	27.5		0.8	65	10	30.3	4.4
79		3.3	32	22	13	27.5		0.8	65	10	18.8	7
80		4	32	28	14	27.5		0.8	65	10	22.7	5.8
81		5	32	28	14	27.5		0.8	65	10	18.2	7.3
82		6	32	30	18	27.5		0.8	65	10	15.1	8.7
83		7	32	30	18	27.5		0.8	65	10	13	10.2
84		8	32	33	18	27.5		0.8	65	10	12.5	10.5
85		9	32	33	18	27.5		0.8	65	10	11.1	11.8
86		10	32	37	22	27.5		0.8	65	10	11	12
87		10	32	37	22	27.5	10.2	0.8	65	10	9.1	14.5
88		11	32	37	22	27.5		0.8	65	10	10	12
89		11	32	37	22	27.5	10.2	0.8	65	10	8.3	16
90		12	32	37	22	27.5		0.8	65	10	9.3	12
91		12	32	37	22	27.5	10.2	0.8	65	10	7.6	16
92		13	32	37	22	27.5		0.8	30	10	8.8	12
93		13	32	37	22	27.5	10.2	0.8	30	10	8.1	16.2
94		14	32	37	22	27.5		0.8	30	10	8.2	12
95		14	32	37	22	27.5	10.2	0.8	30	10	7.6	16.5
96		8	41.5	30	16	37.5		1	30	18	22.3	5.4
97		9	41.5	30	16	37.5		1	30	18	19.8	6.1
98		10	41.5	34	19	37.5		1	30	18	17.8	6.7
99		12	41.5	34	19	37.5		1	30	18	14.9	8.1
100		15	42	40	20	37.5	10.2	1	30	18	11.9	10.1
101		20	42	44	24	37.5	10.2	1	30	18	8.9	13.5
102		25	42	44	24	37.5	10.2	1	30	18	7.1	16.8
103		30	42	45	30	37.5	20.3	1.2	30	18	5.9	20.2
104		35	42	50	35	37.5	20.3	1.2	30	18	5.5	22
105		40	42	50	35	37.5	20.3	1.2	30	18	4.8	25.1
106		45	42	55	40	37.5	20.3	1.2	30	18	4.2	28.3
107		50	42	55	40	37.5	20.3	1.2	30	18	3.8	31.4
108		55	42	60	45	37.5	20.3	1.2	15	18	3.5	34.5
109		60	42	60	45	37.5	20.3	1.2	15	18	3.2	35
110		65	42	60	45	37.5	20.3	1.2	15	18	2.9	35
111		40	57.5	45	30	52.5	20.3	1.2	15	33	8.9	13.5
112		45	57.5	45	30	52.5	20.3	1.2	15	33	7.9	15.1
113		50	57.5	50	35	52.5	20.3	1.2	15	33	7.1	16.8
114		55	57.5	50	35	52.5	20.3	1.2	15	33	6.5	18.5
115		60	57.5	50	35	52.5	20.3	1.2	15	33	5.9	20.2
116		65	57.5	55	45	52.5	20.3	1.2	15	33	5.5	21.9
117		70	57.5	55	45	52.5	20.3	1.2	15	33	5.1	23.6
118		75	57.5	55	45	52.5	20.3	1.2	15	33	4.8	25.2
119		80	57.5	55	45	52.5	20.3	1.2	15	33	4.6	25.9
120		85	57.5	55	45	52.5	20.3	1.2	15	33	4.5	26.7
121		90	57.5	55	45	52.5	20.3	1.2	15	33	4.2	28.3
122		95	57.5	65	45	52.5	20.3	1.2	15	33	4	29.8
123		100	57.5	65	45	52.5	20.3	1.2	15	33	3.8	31.4
124		110	57.5	65	45	52.5	20.3	1.2	15	33	3.5	34.5
125	UN85°C=900Vdc	1	32	18	9	27.5		0.8	70	9	45.4	2.9
126		2	32	20	11	27.5		0.8	70	9	30.3	4.4
127		3	32	22	13	27.5		0.8	70	9	18.8	7
128		4	32	28	14	27.5		0.8	70	9	22.7	5.8
129		5	32	28	18	27.5		0.8	70	9	18.2	7.3
130		6	32	33	18	27.5		0.8	70	9	15.1	8.7
131		7	32	33	18	27.5		0.8	70	9	13	10.2
132		8	32	37	22	27.5		0.8	70	9	12.5	10.5
133		8	32	37	22	27.5	10.2	0.8	70	9	11.1	11.8
134		9	32	37	22	27.5		0.8	70	9	11	12
135		9	32	37	22	27.5	10.2	0.8	70	9	9.1	14.5
136		10	32	37	22	27.5		0.8	70	9	10	12
137		10	32	37	22	27.5	10.2	0.8	70	9	8.3	16
138		4.7	41.5	30	16	27.5		1	70	17	9.3	12
139		5	41.5	30	16	27.5	10.2	1	70	17	7.6	16
140		6	41.5	30	16	27.5		1	70	17	8.8	12
141		7	41.5	30	16	27.5	10.2	1	70	17	8.1	16.2
142		8	41	34	19	27.5		1	70	17	8.2	12
143		10	42	40	20	27.5	10.2	1	70	17	7.6	16.5
144		12	42	37	22	37.5	10.2	1	35	17	22.3	5.4
145		15	42	44	24	37.5	10.2	1	35	17	19.8	6.1
146		18	42	44	24	37.5	10.2	1	35	17	17.8	6.7
147		20	42	44	24	37.5	10.2	1	35	17	14.9	8.1
148		25	42	45	30	37.5	20.3	1.2	35	17	8.9	13.5
149		30	42	50	35	37.5	20.3	1.2	35	17	7.1	16.8
150		35	42	55	40	37.5	20.3	1.2	35	17	5.9	20.2
151		40	42	55	40	37.5	20.3	1.2	35	17	5.5	22
152		45	42	60	45	37.5	20.3	1.2	35	17	4.8	25.1
153		50	42	60	45	37.5	20.3	1.2	35	17	4.2	28.3
154		30	57.5	45	30	52.5	20.3	1.2	15	31	8.9	13.5
155		35	57.5	45	30	52.5	20.3	1.2	15	31	7.1	16.8
156		40	57.5	50	35	52.5	20.3	1.2	15	31	6.5	18.5
157	UN85°C=1000Vdc	1	32	18	9	27.5		0.8	75	8	76.4	1.7
158		2	32	22	13	27.5		0.8	75	8	38.2	3.5
159		3	32	28	14	27.5		0.8	75	8	25.5	5.2
160		4	32	30	18	27.5		0.8	75	8	19.1	6.9
161		5	32	33	18	27.5		0.8	75	8	15.3	8.6
162		6	32	33	18	27.5		0.8	75	8	14.9	8.9
163		7	32	37	22	27.5		0.8	75	8	14.5	9.4
164		7	32	37	22	27.5	10.2	0.8	75	8	11.4	11.6
165		8	32	37	22	27.5		0.8	75	8	13	10.8
166		8	32	37	22	27.5	10.2	0.8	75	8	10	13.3
167		5	41.5	30	16	27.5		1	75	8	31.2	3.8
168		6	41.5	30	16	27.5		1	75	8	26	4.6
169		7	41.5	35	19	27.5		1	75	8	22.3	5.4
170		8	41.5	34	19	37.5		1	37	15	19.5	6.2
171		10	42	40	20	37.5		1	37	15	15.6	6.7
172		10	42	40	20	37.5	10.2	1	37	15	15.6	7.7
173		12	42	37	22	37.5		1	37	15	13	9.2
174		12	42	37	22	37.5	10.2	1	37	15	15	8
175		15	42	44	24	37.5	10.2	1	37	15	10.4	11.5
176		18	42	45	30	37.5	20.3	1.2	37	15	8.7	13.8
177		20	42	45	30	37.5	20.3	1.2	37	15	7.8	15.4
178		25	42	50	35	37.5	20.3	1.2	37	15	6.2	19.2
179		30	42	55	40	37.5	20.3	1.2	37	15	5.2	23.1
180		35	42	55	40	37.5	20.3	1.2	37	15	4.8	25.1
181		40	42	60	45	37.5	20.3	1.2	37	15	4.2	28.7
182		25	57.5	45	30	52.5	20.3	1.2	17	28	12.5	9.6
183		30	57.5	45	30	52.5	20.3	1.2	17	28	10.4	11.5
184		35	57.5	50	35	52.5	20.3	1.2	17	28	8.9	13.5
185		40	57.5	50	35	52.5	20.3	1.2	17	28	7.8	15.4
186		45	57.5	55	45	52.5	20.3	1.2	17	28	6.9	17.3
187		50	57.5	55	45	52.5	20.3	1.2	17	28	6.2	19.2
188		55	57.5	55	45	52.5	20.3	1.2	17	28	5.7	21.1
189		60	57.5	65	45	52.5	20.3	1.2	17	28	5.2	23.1
190		65	57.5	65	45	52.5	20.3	1.2	17	28	4.8	25
191		70	57.5	65	45	52.5	20.3	1.2	17	28	4.5	26.9
192	UN85°C=1100Vdc	0.68	32	20	11	27.5		0.8	80	8	80	1.7
193		1	32	20	11	27.5		0.8	80	8	59.4	2.2
194		1.5	32	22	13	27.5		0.8	80	8	55.7	2.4
195		2	32	25	14	27.5		0.8	80	8	27.9	4.7
196		3	32	30	18	27.5		0.8	80	8	20.4	6.5
197		4	32	33	18	27.5		0.8	80	8	15.3	8.6
198		5	32	37	22	27.5		0.8	80	8	14	9.8
199		5	32	37	22	27.5	10.2	0.8	80	8	12.3	10.8
200		6	32	37	22	27.5		0.8	80	8	12.3	10.8
201		6	32	37	22	27.5	10.2	0.8	80	8	10.2	12.9
202		3	41.5	30	16	37.5		1	40	15	48.3	2.5
203		4	41.5	30	16	37.5		1	40	15	36.2	3.3
204		4.7	41.5	34	19	37.5		1	40	15	30.8	3.9
205		5	41.5	34	19	37.5		1	40	15	29	4.1
206		6	41.5	34	19	37.5		1	40	15	24.2	5
207		7	42	40	20	37.5	10.2	1	40	15	20.7	5.8
208		8	42	37	22	37.5	10.2	1	40	15	18.1	6.6
209		9	42	37	22	37.5	10.2	1	40	15	16.1	7.5
210		10	42	44	24	37.5	10.2	1	40	15	14.5	8.3
211		12	42	44	24	37.5	10.2	1	40	15	12.1	9.9
212		15	42	45	30	37.5	20.3	1.2	40	15	9.7	12.4
213		18	42	50	35	37.5	20.3	1.2	40	15	8.1	14.9
214		20	42	50	35	37.5	20.3	1.2	40	15	7.2	16.6
215		25	42	55	40	37.5	20.3	1.2	40	15	5.8	20.7
216		30	42	60	45	37.5	20.3	1.2	40	15	4.8	24.8
217		20	57.5	45	30	52.5	20.3	1.2	20	27	14.5	8.3
218		25	57.5	50	35	52.5	20.3	1.2	20	27	11.6	10.4
219		30	57.5	50	35	52.5	20.3	1.2	20	27	9.7	12.4
220		35	57.5	55	45	52.5	20.3	1.2	20	27	8.4	14.3
221		40	57.5	55	45	52.5	20.3	1.2	20	27	7.8	15.5
222		45	57.5	55	45	52.5	20.3	1.2	20	27	6.9	17.4
223		50	57.5	65	45	52.5	20.3	1.2	20	27	6.2	19.3
224		55	57.5	65	45	52.5	20.3	1.2	20	27	5.6	21.3
225	UN85°C=1200Vdc	1	32	20	11	27.5		0.8	90	7	39.5	3.5
226		2	32	28	14	27.5		0.8	90	7	26.3	5
227		3	32	30	18	27.5		0.8	90	7	17.5	7.5
228		4	32	33	18	27.5		0.8	90	7	13.9	9.5
229		5	32	37	22	27.5		0.8	90	7	12.7	10.4
230		5	32	37	22	27.5	10.2	0.8	90	7	11.1	11.8
231		3	41.5	30	16	37.5		1	45	13	37.2	3.2
232		4	41.5	30	16	37.5		1	45	13	27.9	4.3
233		5	41.5	34	19	37.5		1	45	13	22.3	5.4
234		6	42	40	20	37.5		1	45	13	18.6	6.5
235		7	42	37	22	37.5	10.2	1	45	13	15.9	7.5
236		8	42	44	24	37.5	10.2	1	45	13	13.9	8.6
237		9	42	44	24	37.5	10.2	1	45	13	12.4	9.7
238		10	42	44	24	37.5	10.2	1	45	13	11.1	10.8
239		12	42	45	30	37.5	20.3	1.2	45	13	9.3	12.9
240		15	42	50	35	37.5	20.3	1.2	45	13	7.4	16.1
241		18	42	50	35	37.5	20.3	1.2	45	13	6.6	18.1
242		20	42	55	40	37.5	20.3	1.2	45	13	6	20.1
243		25	42	60	45	37.5	20.3	1.2	45	13	4.8	25.1
244		15	57.5	45	30	52.5	20.3	1.2	23	24	15.9	7.5
245		20	57.5	45	30	52.5	20.3	1.2	23	24	11.9	10
246		25	57.5	55	45	52.5	20.3	1.2	23	24	9.6	12.6
247		30	57.5	55	45	52.5	20.3	1.2	23	24	8	15.1
248		35	57.5	55	45	52.5	20.3	1.2	23	24	6.8	17.6
249		40	57.5	65	45	52.5	20.3	1.2	23	24	6	20.1
250		45	57.5	65	45	52.5	20.3	1.2	23	24	5.3	22.6
251	UN 85℃ =1800VDC	6	42.5	45	30	37.5	20.3	1.2	100	10	24	5
252		8	42.5	50	35	37.5	20.3	1.2	100	10	20	8
253		10	42.5	55	40	37.5	20.3	1.2	100	10	18	10
254		8	57.5	45	30	52.5	20.3	1.2	50	15	12	13
255		10	57.5	50	35	52.5	20.3	1.2	50	15	10	17
256		15	57.5	56	42.5	52.5	20.3	1.2	50	15	8	20
257		18	57.5	55	45	52.5	20.3	1.2	50	15	7.5	21
258		20	57.5	65	45	52.5	20.3	1.2	45	15	7	22
