Power electronic capacitor collection
Typical application circuit of power electronics
Power electronic capacitor selection guide
| Item | Name | Model | Picture | Abstract | |
| 1 | AC filter capacitor | FAC-MCF/MCM |  |

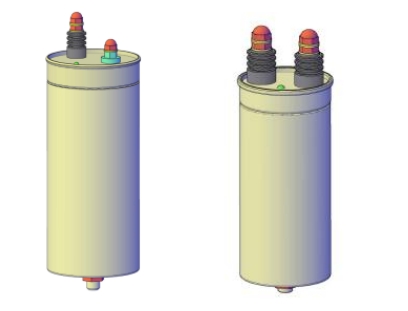

Aluminium cylinderical shell AC film capacitor; metalized film Single phase: 10uf~1000uf 3-phase: 3×40uF～3×200μF Working temp: -40~85C | AC Filtering Film Capacitor With Dry Resin Capsulation PFC Capacitor For Improving Power Quality |
| FACH-MSD |  |

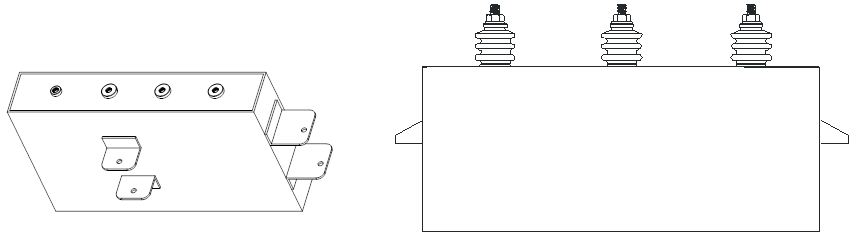

High power AC film capacitor with rectangular metal case; Dielectric: metalized film; Working temp: -40~85C Custom-design upon request; | High Power AC Capacitor | ||
| FACH-MSO |
|

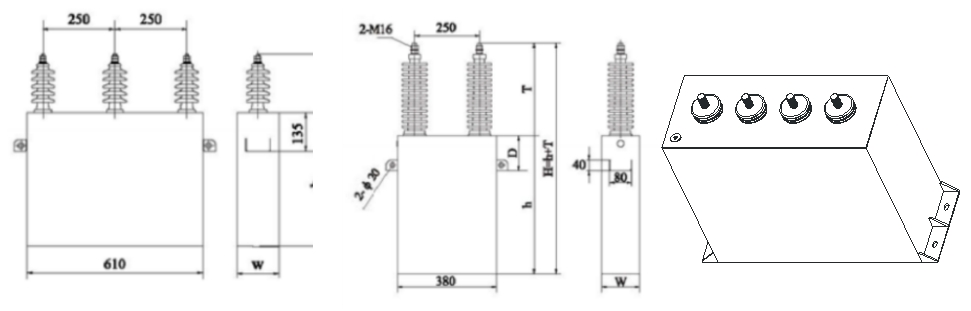

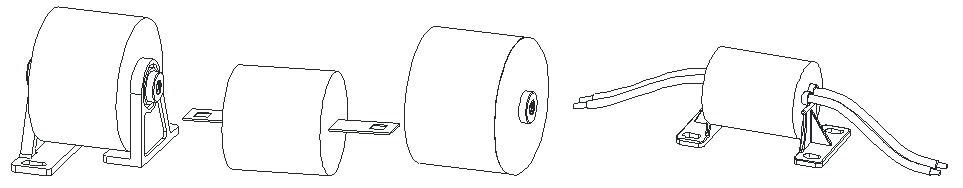

Rectangular Metal case, ceramic terminals; Capacity: 50 Kvar～1000Kvar Max rated voltage: 24KV built-in discharger and fuse protection available Enviroment temp: -45~ 45C | 4KV~14KV AC Filter Capacitor 50Hz Parallel PFC capacitor banks with internal fuse Power factor correction Shunt Capacitor 100Kvar～1000Kvar 3-phase HV power capacitor High voltage Power capacitor for power quality | ||
| FAC-PCM |  |
Dry type film capacitor; Plastic cylinderical shell; Screw terminals mounting; | Custom Design | ||
| FAC-PSP |
|

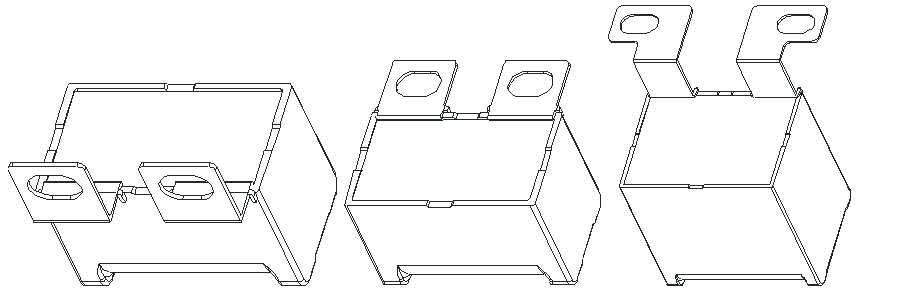

2pins / 4pins / 6pins / 12pins terminals avalable; Plastic square case PCB capacitor with dry resin filling for AC circuit; PCB mounting; | PCB Mounting Capacitor for AC Circuit | ||
| 2 | DC-Link capacitor | FDCH-MSD |  |

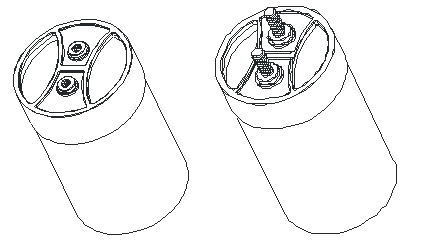

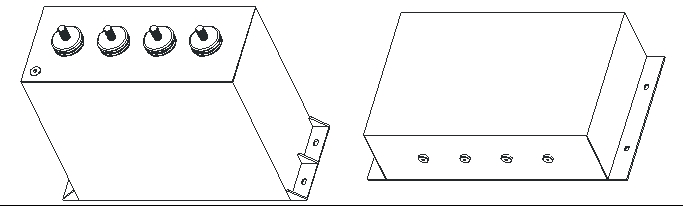

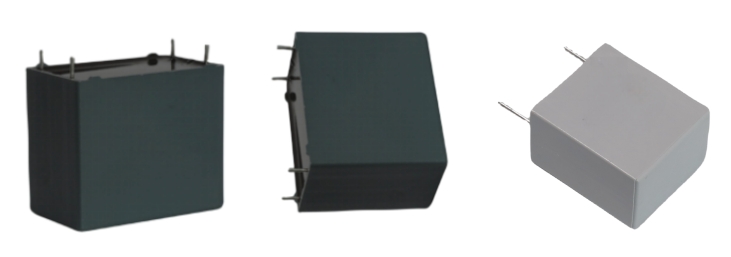

Dry type film capacitor; Custom-design upon request; | High-capacity DC support capacitor Custom dc-link film capacitor |
| FDCH-MSO | Oil-impregnated film capacitor; Custom-design upon request; | DC Filtering Capacitor For Medum-Frequency Coreless Induction Furnace | |||
| FDC-PSP |
|

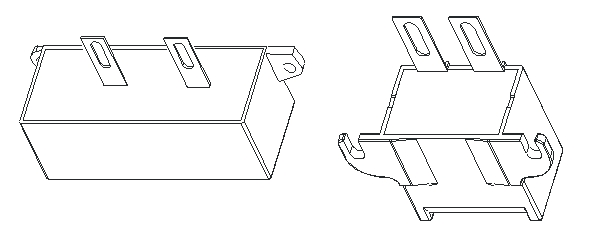

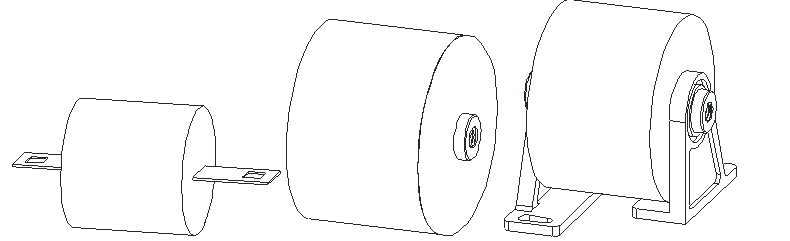

2pins / 4pins / 6pins / 12pins terminals available ; Plastic square case PCB capacitor with dry resin filling; PCB mounting; | PCB mounting Plastic film capacitor with high temperature resistant | ||
| FDC-PST |  |
Plastic square case with dry resin filling; Lugs terminal mounting; | Custom Design | ||
| FDC-PCM |  |
DC link filter capacitor with plastic cylinder shell; Dry resin filling; | Custom Design | ||
| FDC-MCF/MCM |
|

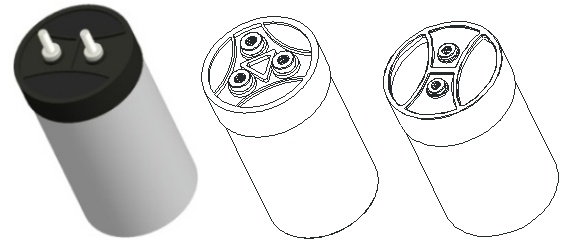

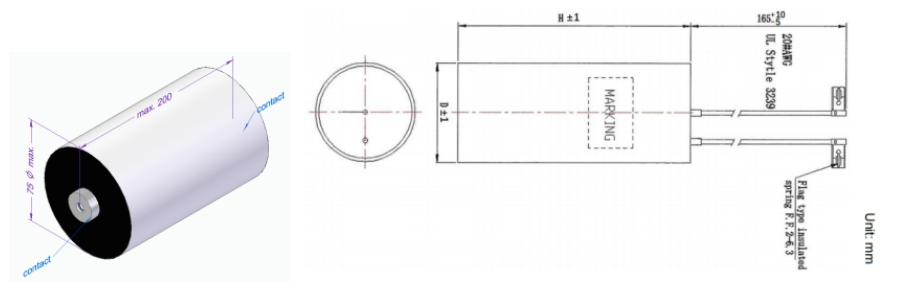

DC link filtering capacitor with aluminum cylinder shell; Dry resin filling; Male/femal screws termibals available; | Film Capacitor Featured High Ripple Current | ||
| FDC-MTC |
|

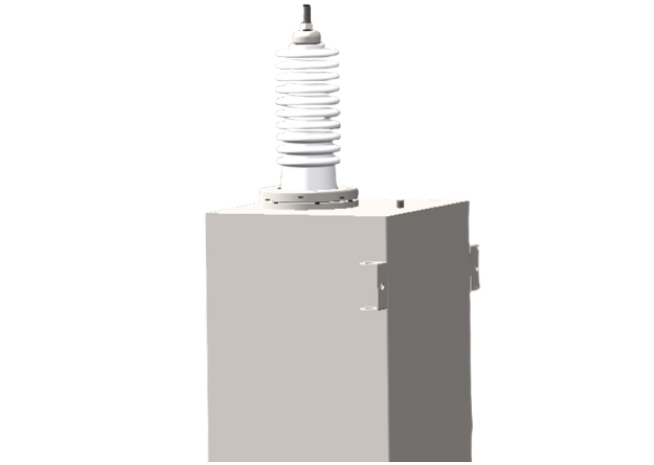

DC link filtering capacitor wirh myra tape/plastic cylinder shell; Dry resin filling; | Custom Design | ||
| 3 | Snubber capacitor | FSC-TEP |  |
Mylar tape Snubber capacitor with ellipsoid with core; PCB mounting; | Custom Design |
| FSC-TCP |  |
Mylar tape Snubber capacitor with cylinder core; PCB mounting; | Custom Design | ||
| FSC-PSA |  |
Surge Absorbing Capacitor for IGBTs | Custom Design | ||
| Absorb capacitor | FSCH-MCA |
|
Damped absorbing capacitor Max rated voltage: 7000VAC Explosionproof oil-immersed capacitor with heavy current withstand ability. | Custom Design | |
| Resonance capacitor | FRC-PCM |  |
Resonance capacitor with plastic can shell | Custom Design | |
| FRC-PCT |  |
Resonance capacitor with Mylar tape | Custom Design | ||
| 5 | Pulse capacitor | FPCH-PCM |
|
Pulse energy storage capacitor Rated voltage: 800-100000Vdc Max Capacitance: 20000uF Max Working frequency:100Khz | Pulse energy storage capacitor |
| 6 | pulse capacitor | FPCH-MS |
|
Oil-immersed pulse capacitor, Coarse polypropylene film as medium, Alumiunm foil as electrode. 0.5kVdc-100kVdc Withstand 100000 times charge and discharge between electrodes without loss and breakdown. | Pulse capacitor |

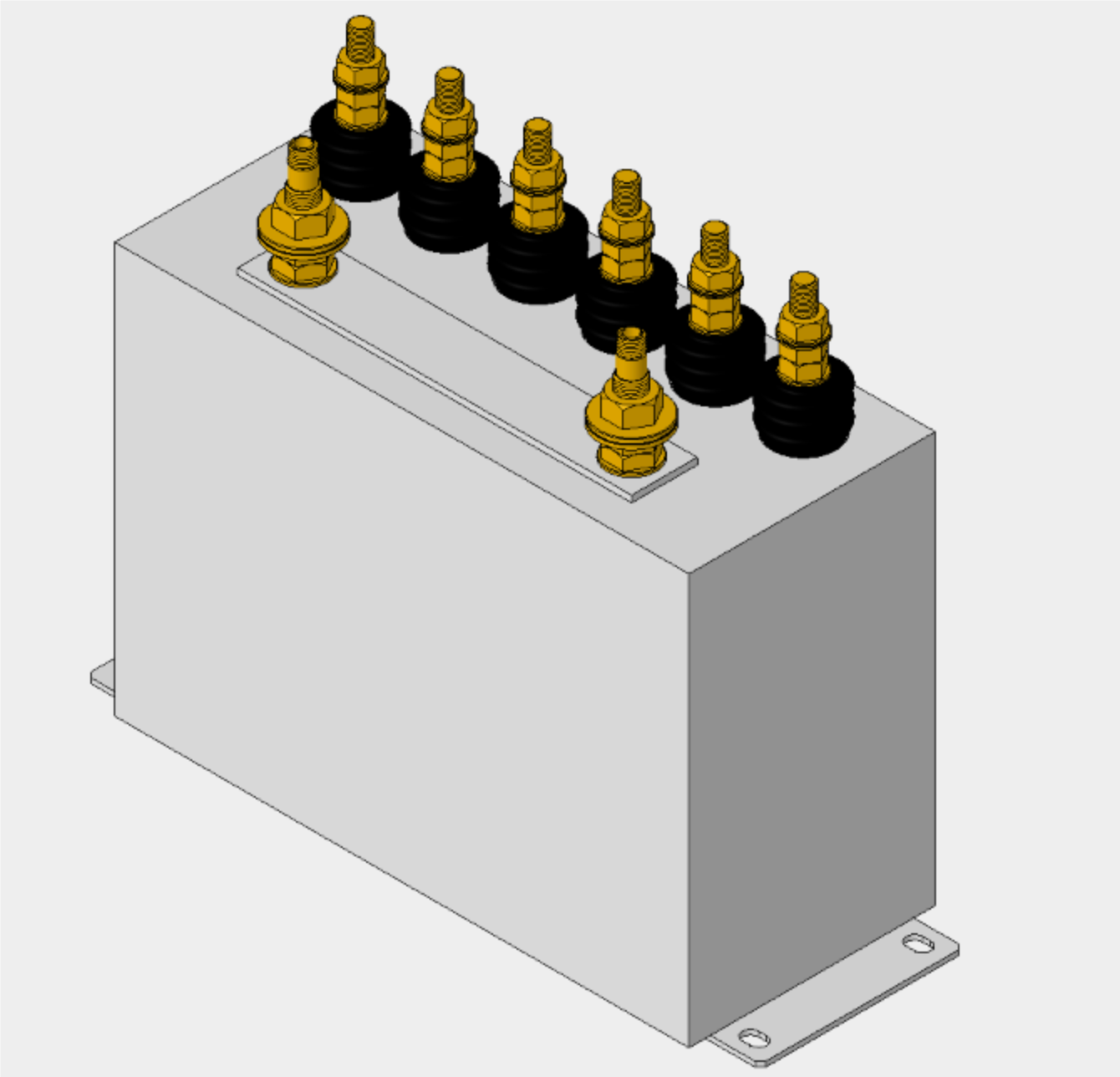

| 6 | Induction heating capacitor | RFM/RAM/DZMJ |
|
Max 8000VAC, 15000Kvar water cooled capacitor | Induction Heating/Melting Capacitor |
