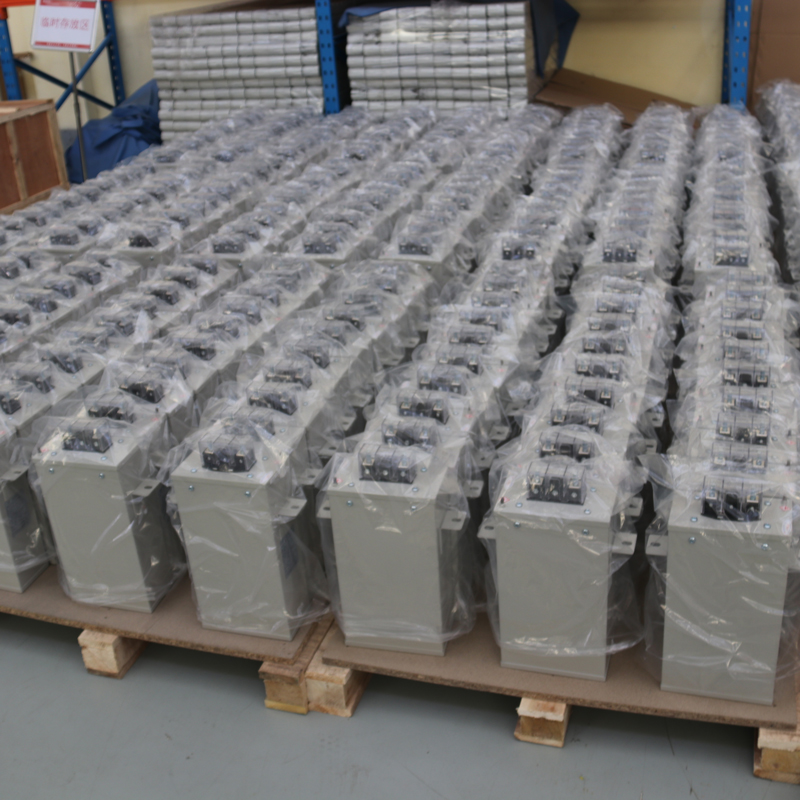

Power factor correction Shunt Capacitor

Flair provide solutions for power factor control and filtering. Flair’s PFC capacitors are offering capacitor banks with protecion device of Over-heat, overcurrent, overpressure.
The capacitors are designed with multiple elements connected to be single phase or three phase.
Shunt capacitors mainly used for compensation for reactive power in power systems to increase the power factor, so as to improve the power quality. While the filter capacitors are used for filtering out the corresponding frequency harmonics in the power systems.

product details

Flair Shunt capacitor design features

1.Dielectric: Metalized film

2.Filling Material: heat convertible resin

3.Safety protection device: each elements are mouting safety protection device to protect capacitor from explosion or short-circuit failures. So as to guarantee the failure elements being separated with circuits.

4.Buit-in discharge resistor available

5.Package: stainless steel shell, hermetically sealed

6.Frequency 50Hz

7.1mm galvanized stainless steel shell with good heat dissipation effect

8.Sufficient space between elements, benficial for heat dissipation and lower internal temperature;

9.Internal fuse available

10.Internal copper busbar connection(low current density,low contact resistance,low loss )

11.Fixed connection discharge resistor (Decrease the voltage below 75V after power cut-off within 3 minutes, upon request)

12.Enviroment temperature: -20C~+50 C

13.Altitude: below 2000m

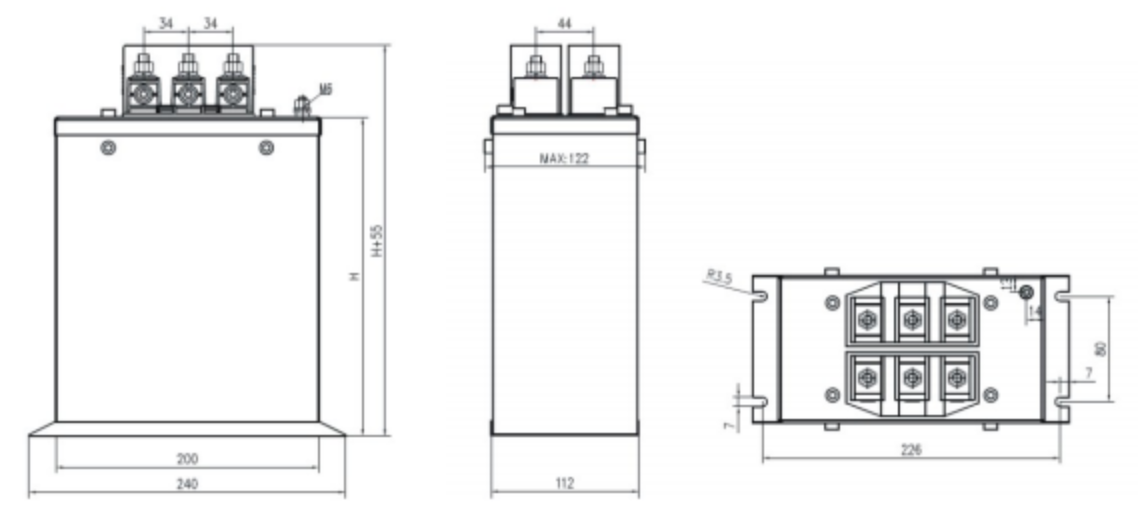

Specification Table

Model	Capacity	Current	Capacitance	Weight	Diemension(mm)
Model	Kvar	A	uf	kg	Length	Width	Height
3-phase 400VAC 50Hz Indoor
FACS-BC3	25	20.8×3	166×3	5.0	200~240	112	242
FACS-BC3	30	25.0×3	199×3	5.0	200~240	112	242
FACS-BC3	40	33.3×3	265×3	6.5	200~240	112	306
FACS-BC3	50	41.7×3	332×3	7.8	200~240	112	370
FACS-BC3	60	50.0×3	398×3	9.0	200~240	112	435
3-phase 460VAC 50Hz Indoor
FACS-BC3	20	14.5×3	100×3	4.2	200~240	112	178
FACS-BC3	25	18.1×3	125×3	5.0	200~240	112	242
FACS-BC3	30	21.7×3	150×3	5.0	200~240	112	242
FACS-BC3	40	29.0×3	201×3	6.5	200~240	112	306
FACS-BC3	50	36.2×3	251×3	7.8	200~240	112	370
FACS-BC3	60	43.5×3	301×3	9.0	200~240	112	435

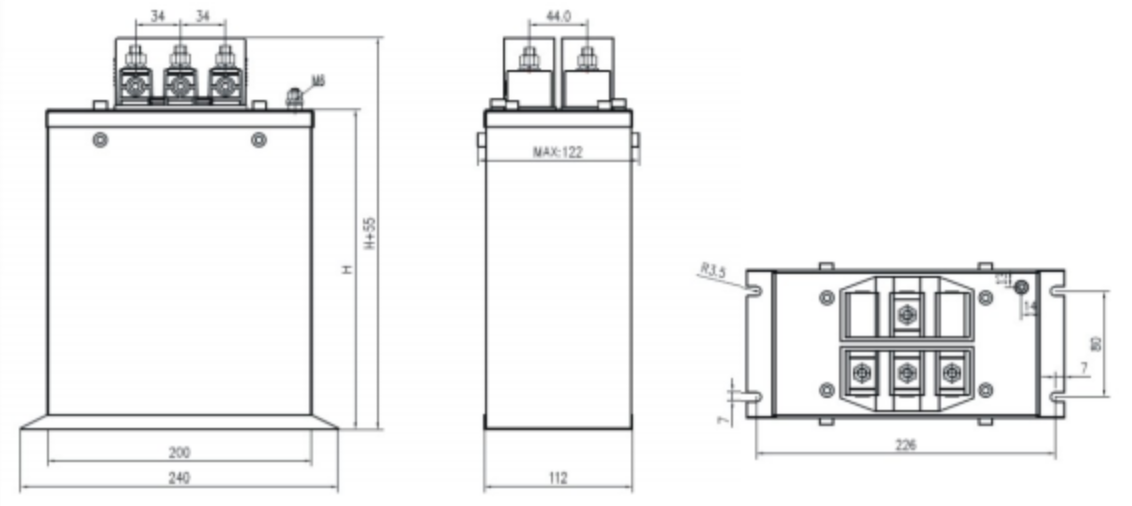

The capacitor internal is not connected; Generally used for capacitor triangle connection angle in the fling-cut switch.

Model	Capacity	Current	Capacitance	Weight	Diemension
Model	Kvar	A	uf	kg	Length	Width	Height
3 phase 400VAC 50Hz
FACS-BC3Y	6	8.7	119	3.6	200~240	112	114
FACS-BC3Y	12	17.3	239	4.3	200~240	112	178
FACS-BC3Y	18	26.0	358	5.1	200~240	112	242
FACS-BC3Y	24	34.6	477	6.5	200~240	112	306
FACS-BC3Y	30	43.3	597	7.8	200~240	112	370
FACS-BC3Y	36	52.0	716	9.1	200~240	112	435
3phase 440VAC 50Hz
FACS-BC3Y	7	9.2	115	3.6	200~240	112	114
FACS-BC3Y	14	18.4	230	4.3	200~240	112	178
FACS-BC3Y	21	27.6	345	5.1	200~240	112	242
FACS-BC3Y	29	38.1	477	6.5	200~240	112	306
FACS-BC3Y	36	47.2	592	7.8	200~240	112	370
FACS-BC3Y	43	56.4	707	9.1	200~240	112	435
The capacitor internal is wye connection;

Model	Capacity	Current	Capacitance	Weight	Diemension(mm)
Model	Kvar	A	uf	kg	Length	Width	Height
3-phase 400VAC 50Hz Indoor，
FACS-BC	20	28.9	398	4.2	200~240	112	178
FACS-BC	25	36.1	497	5.0	200~240	112	242
FACS-BC	30	43.3	597	5.0	200~240	112	242
FACS-BC	40	57.7	796	6.5	200~240	112	306
FACS-BC	50	72.2	995	7.8	200~240	112	370
FACS-BC	60	86.6	1194	9.0	200~240	112	435
3-phase 460VAC 50Hz indoor
FACS-BC	20	25.1	301	4.2	200~240	112	178
FACS-BC	25	31.4	376	5.0	200~240	112	242
FACS-BC	30	37.7	451	5.0	200~240	112	242
FACS-BC	40	50.2	602	6.5	200~240	112	306
FACS-BC	50	62.8	752	7.8	200~240	112	370
FACS-BC	60	73.3	903	9.0	200~240	112	435
The harmonic filtering capacitor is usually connect with reactor in series to filter the frequency harmonic in the powe system;
