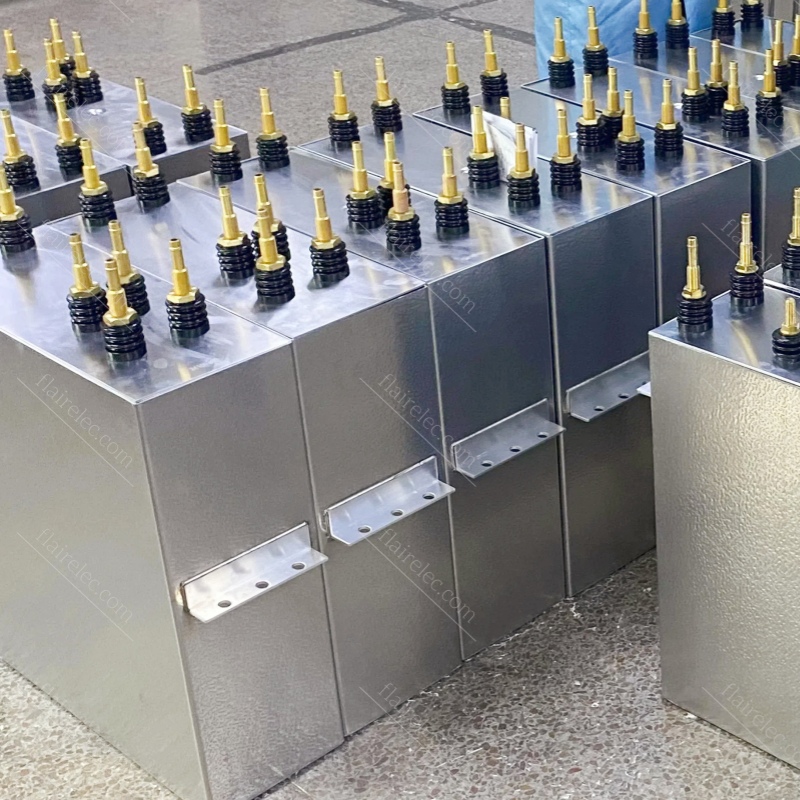

Water-Cooled Capacitor for Induction Melting Furnace
Discovering newly water-cooled capacitor bank for induction heating and melting furnaces. Flair is offering the best capacitor banks for metal casting applications.
1. AC power capacitor (Water-cooled type)
2. DC filtering capacitor (water-cooled type and dry type for options)
High energy pulse discharge capacitors
Pulsed capacitor is capable of charge storage, and releasing a huge charge in a very short time. Our company can provide oil-immersed foil type, dry type, plastic case and other types of pulse capacitors for various purposes.
Self-healing pulse capacitors
One of our top technology is that we developed energy storage pulse capacitor with 3.0MJ/m3 energy density with service life more than 2000 shoot times. The technical performance parameters of the pulse capacitors are in the leading level in domestic.
DC filtering capacitor
Dielectric: Metalized self-healing film
Metal housing with great resistance to shock
high peak current
high energy density
DC filtering, DC voltage support
Max 9000VDC
DC water-cooling Capacitor for Induction Heating
The dc filter capacitor designed for high-power series resonant induction heating system. DC water-cooling capacitors are fuctional in three-phase power supply of 380VAC, 575VAC and 660VAC (internaly connected in series).
AC water cooled capacitor for induction-heating circuit
High power capacitor made for induction heating equipment and melting furnaces.
Water-cooled capacitor are in high demand, particularly for induction heating plants where the frequency of the current supply is above 50 cycles/second, the adoption of water-cooled capacitors will save cost for capacitor bank for power factor correction and reduce the occupy space.
Metallized film DC filter capacitor
High-voltage high-capacity Metallized film DC filter capacitor
1.Capacitance Range： 220μF ~ 8000μF
2.Capacitance: ±10%
3.Voltage Range: 800 ~ 2000 V
4.Maxmum Current: 360Arms
5.Stray lnductance( Ls): 28nH ~ 40nH
6.Test Voltage between terminals:1.5Un dc 10s
7.Test Voltage between terminals and case: 4kVac 50Hz 1min.
High-capacity DC support capacitor
Description
The windpower, solar power, HVDC is developing fast. So the power system faces the demand of diversity regulation. Required by time and tide, a great attention is devoted to power conversion, energy storage and transmission. Flair has been offering capacitors for power conversion, energy storage and power distribution and transmission. With our rich experience and strong RD team, we focus on providing with the most professional propoals and serving high-quality products failthfully and responsibly.
High voltage and high current working enviroment will accelerate the aging of capacitors that cause capacitor faulture easily. We studied on this project since 2017 when the national double carbon call is promoted. We have conquered key technology of large-capacity DC capacitor banks with satisfactory operation under harsh working enviroment.
Custom dc-link film capacitor
Description
1. Metal shell encapsulation, dry resin infusion;
2. Copper nut / screw leads;
3. High-capacity, high power, High voltage;
4. Metallized self-healing film;
5. High ripple current, high dv / dt withstand capability
Film capacitor for low-flying aircraft
Film capacitors for low-flying aircrafts
Will the low-altitude aerocraft be the next most popular means of transportation?
The development of busbar film capacitors specifically designed for aerocraft applications represents a significant advancement in the field of low-altitude e-aviation.

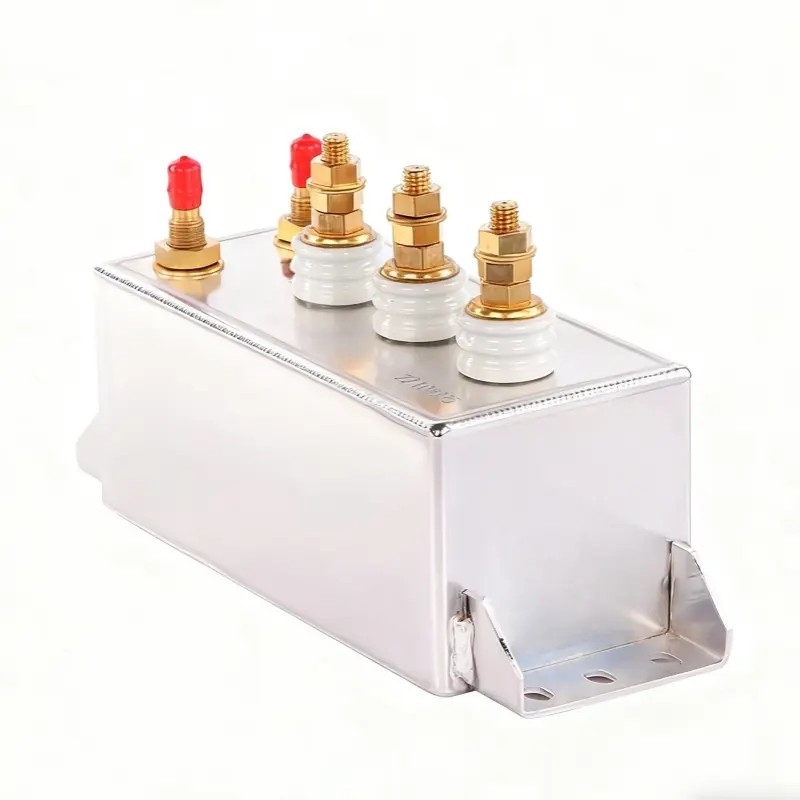

Water Cooled Induction Heating Capacitor
Compare with conventional melting furnace, the inductive melting technology make the melting work easier than ever, it’s popular used in forging, tempering and melting of metals. The benefits include high efficiency, fast heating speed, controllable heating temperature and melting quality, pleasant working enviroment, guranteed occupational safety,enviroment friendly etc. And the inductive melting achieves higher smelting quality in terms of controllable operation. The Induction technoloy is suitable for bulk casting production in grey iron foundries since it can handle high output and large capacities.
Water cooled induction heating capacitors
Compensating Capacitor for Intermediate Frequency Furnace
Application
Compensating capacitor used in intermediate frequency furnace for increase the power of the induction furnace.
The popular immediate frequency heating/melting furnace generally related to induction coil and resonant capacitors.The fabrication form the induction heating magnetic field. It mainly used for heating, melting,annealing, high-frequency welding etc. The induction heating/melting is well-know method for heating electrically conductive metals. The process convert the power energy into heat energy requires high power efficiency. A parallel capacitors form a resonant circuit employed in the system.
