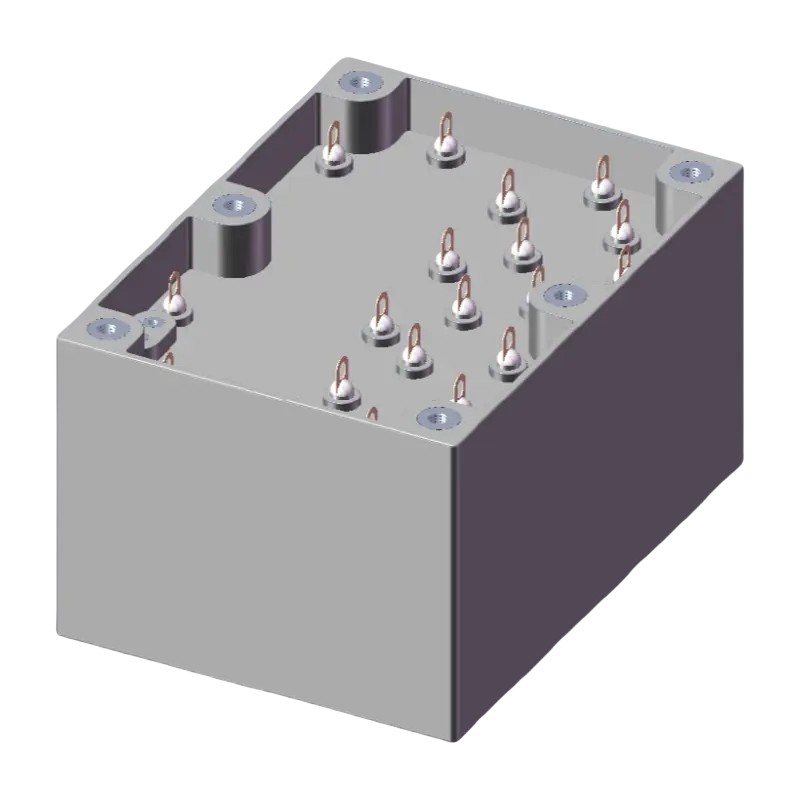

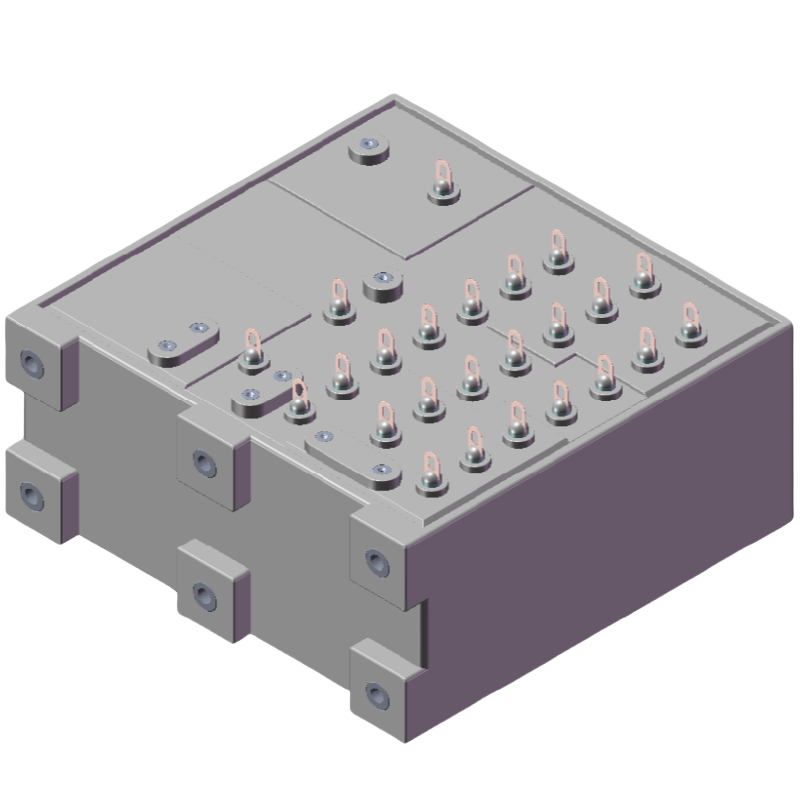

Special Capacitor Bank Suppliers: Max 40K VDC Capacitor Bank from Reliable China Factory
Technical data
| No | Specification | Data |
|---|---|---|
| 1 | Capacitance (CN) | 0.01μF～1.5μF |
| 2 | Tolerance | ±5% / ±10% |
| 3 | Rated Voltage (Un) | 3k Vdc~40k Vdc |
| 4 | Insulation resistance | ≥10,000MΩ |
| 5 | Operating Temperature | -55℃ ~ +85℃ |
| 6 | Test Voltage between electrodes | 1.5Un (10 seconds in oil) |
Capacitor Features

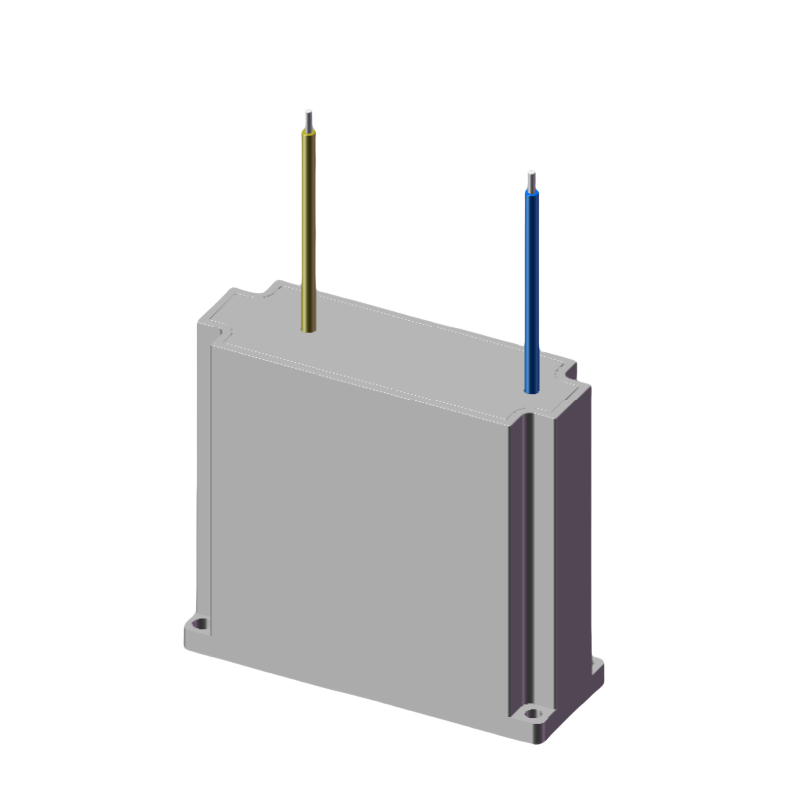

- Capacitor Constructure: Plastic case, fully sealed oil-impregnated structure.
- Medium: Polypropylene film and Paper composite medium
- Stable performace, safe and reliable, Long lifespan
Application
Aviation system, Such as airborne radar power supply
Frequently Asked Questions
Q: What is the capacitance range and tolerance for these capacitors?
The capacitance (CN) ranges from 0.01μF to 1.5μF, with a capacitance tolerance of ±5% / ±10%.
Q: What rated voltage range can these capacitors withstand?
These capacitors support a high rated voltage (Un) range starting from 3k Vdc up to 40k Vdc.
Q: What are the key construction materials and design features?
They feature a plastic case with a fully sealed, oil-impregnated structure. The dielectric medium consists of a high-quality polypropylene film and paper composite.
Q: What is the operating temperature range for these capacitors?
These capacitors are designed to operate reliably in extreme environments, with an operating temperature range of -55℃ to +85℃.
Q: How is the insulation resistance and test voltage specified?
The insulation resistance is ≥10,000MΩ. The test voltage between electrodes is rated at 1.5Un for 10 seconds conducted in oil.
Q: What are the typical applications for this series?
They are primarily used in aviation systems, particularly for demanding applications such as airborne radar power supplies.
