Ultra-High Frequency Capacitors for Induction Heating - Top China Suppliers and Factory Solutions

This capacitor is expertly designed to handle frequencies as high as 30kHz, 40kHz, 50kHz, and even 300kHz, making it ideal for ultra-high induction heating machines. As a leading manufacturer and supplier from China, our factory focuses on delivering high-performance capacitors that meet the rigorous demands of modern heating applications. Trust us for reliable solutions that enhance the efficiency and effectiveness of your induction heating processes
    Contact us
    Product Detail

    What is ultra high frequency capacitor?

    The capacitor frequency designed as high as 30khz, 40khz, 50khz, even 300khz, to meet the ultra-high induction heating machine needs.

    What is ultra-high frequency induction machine?

    Ultra-high frequency induction machine is usually used for the industial metal parts surface quenching. It is a induction heat technic that generate a specific eddy-current to the workpiece surface, for heating the surface of workpiece at ultra-high frequency, as so to heat the surface temperature rise to 800-1000 degress in a few seconds, achieved fastly quenching.
    Ultra-sonic frequency induction heating power capacitors are popular used in induction heating&melting process to increase power factor and decrease energy consumption. The power capacitor ususally designed with whole-film medium.

    Technical Features:

    1. Rated voltage: Max 8K VAC
    2. Rated frequency: 300 KHZ
    3. Soaking oil: degradable Insulation oil, Non-PCB
    4. Medium: All-film
    5. Water-cooling method
    6. Increase power factor and decrease energy consumption

    Refererence Datasheet:

    Ultra-sonic frequency induction heating capacitor (AC Water-cooled capacitor)
    Model Specification Voltage capacity Frequency capacitance current Tab Nos Diemension(mm) Capacitor Shell Weight
    KVAC Kvar kHz microfarad(uF) A Length Width Height Feature kg/pc
    RFM 4.0-0.12-40 4 483 40 0.12 120.75 1 170 126 150 Insulation 5
    RFM 4.0-483-40(2) 4 483 40 0.12 120.75 1 170 126 150 Insulation 5
    RFM 4.0-0.22-30 4 664 30 0.22 166 1 210 120 160 Insulation 6.3
    RFM 4.0-691-23 4 691 23 0.3 172.75 1 210 130 160 Insulation 7
    RFM 4.0-694-23(2) 4 694 23 0.3 173.5 1 210 130 160 Insulation 7
    RFM 4.0-700-40 4 700 40 0.174 175 2 170 126 150 Insulation 6
    RFM 4.0-0.18-40 4 724 40 0.18 181 1 210 120 160 Insulation 6.7
    RFM 4.0-803-40 4 803 40 0.2 201 2 170 126 150 Insulation 6.2
    RFM 4.0-0.3-30 4 905 30 0.3 226.25 1 210 120 160 Insulation 6.4
    RFM 4.0-0.18-50 4 905 50 0.18 226.25 1 210 120 160 Insulation 7.0
    RFM 4.0-965-40 4 965 40 0.23 241.25 2 170 126 150 Insulation 5.9
    RFM 4.0-0.2-50 4 1005 50 0.2 251.25 1 210 120 175 Insulation 6.7
    RFM 4.0-0.34-30 4 1025 30 0.34 256.25 1 290 120 160 Insulation 8.4
    RFM 4.0-0.4-30(3) 4 1206 30 0.39 301.5 1 170 126 150 Insulation 5.7
    RFM 4.0-0.42-30 4 1267 30 0.42 316.75 1 303 120 160 Insulation 8.9
    RFM 4.0-0.24x2-30 4 1447 30 0.48 361.75 2 260 120 110 Insulation 6.1
    RFM 4.0-0.48-30 4 1448 30 0.48 362 1 290 120 175 Insulation 9.1
    RFM 4.0-0.56-30 4 1689 30 0.56 422.25 1 200 120 150 Insulation 7.1
    RFM 4.0-0.6-30 4 1810 30 0.6 452.5 1 303 120 180 Insulation 10.3
    RFM 4.0-0.625-30 4 1885 30 0.625 471.25 1 250 120 175 Insulation 9.3
    RFM 4-0.32x2-30 4 1930 30 0.64 482.5 2 260 120 110 Insulation 6.1
    RFM 4.0-2011-20(2) 4 2011 20 1 502.75 1 250 126 220 Insulation 12.6
    RFM 4.0-2170-30(4) 4 2170 30 0.72 542.75 1 303 126 165 Insulation 10.9
    RFM 4.0-0.72-30(3) 4 2171 30 0.72 542.75 1 210 126 175 Insulation 8.5
    RFM 4.0-0.75-30 4 2262 30 0.75 565.5 1 250 120 180 non-Insulation 8.6
    RFM 4.0-0.8-30(2) 4 2413 30 0.8 603.25 1 210 126 180 Insulation 8.8
    RFM 4.0-0.84-30 4 2533 30 0.84 633.25 1 303 126 220 Insulation 12.5
    RFM 4.0-0.68-40 4 2734 40 0.68 683.5 1 303 126 210 Insulation 12.1
    RFM 4.0-2894-30(2) 4 2894 30 0.96 723.75 1 303 126 185 Insulation 11.6
    RFM 4.0-0.96-30 4 2895 30 0.96 723.75 1 303 126 220 Insulation 13.9
    RFM 4.0-1-30(2) 4 3016 30 1 754 2 303 126 170 Insulation 11.5
    RFM 4.0-1.2-30 4 3619 30 1.2 904.75 1 303 150 210 Insulation 16.2
    RFM 4.0-1.5-30 4 4524 30 1.5 1131 1 336 150 220 Insulation 19.6
    RFM 4.0-2-30 4 6032 30 2 1508 1 336 126 350 Insulation 24.6
    RFM 8.0-0.06-300 8 7238 300 0.06 900 2 336 166 395 Insulation 34.0

    Factory operation procedure

    1-capacitor-cases-12vm

    1. capacitor cases

    1-cooing-water-tubes-2tck

    1. cooing water tubes-1

    1-cooling-water-tubes-3s31

    1. cooling water tubes-2

    2-winding-capacitor-core-1vml

    2. winding capacitor core-1

    2-winding-capacitor-core-21k2

    2. winding capacitor core-2

    2-Winding-capacitor-core-3gmc

    2. winding capacitor core-3

    3-soldering-and-assembly-25nf

    3. soldering and assembly

    3-solering-core-1wkr

    3. solering core

    4-Test-of-intermediates-eui

    4. Test of intermediates

    5-sealing-the-case6ye

    5. sealing the case

    6-Vacuum-oil-filling-process-1thr

    6. Vacuum oil filling process-1

    6-Vacuum-oil-filling-process-2x5o

    6. Vacuum oil filling process-2

    6-Vacuum-oil-filling-process-3sz5

    6. Vacuum oil filling process-3

    7-leak-test-0l0

    7. leak test

    8-Ex-factory-testqax

    8. Ex-factory test

    9-packing-and-delivery4b4

    9. packing and delivery

    Flair Solutions

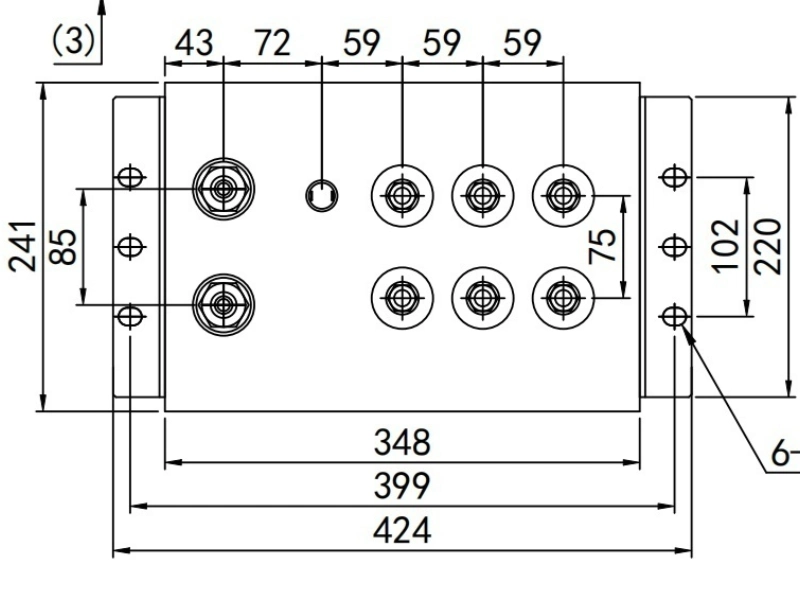

    Induction Furnace Capacitor Bank Design

    Induction Furnace Capacitor Bank Design

    01
    Mid-frequency Induction heating capacitor banks

    Mid-frequency Induction heating capacitor banks

    02
    Resonant Capacitor bank for intermediate frequency furnace

    Resonant Capacitor bank for intermediate frequency furnace

    03
    750 VAC water cooled capacitor in Heat Treatment induction Furnace

    750 VAC water cooled capacitor in Heat Treatment

    04
    Custom Power capacitor 1500Vac-4000Kvar-1000hz

    Custom Power capacitor 1500Vac-4000Kvar-1000hz

    05
    Personalized Induction heater capacitor

    Personalized Induction heater capacitor

    06
    Power capacitor of intermediate frequency furnace

    Power capacitor of intermediate frequency furnace

    07
    Filter capacitor of induction heating system

    Filter capacitor of induction heating system

    08
    High-capacity water cooled capacitor

    High-capacity water cooled capacitor

    09
    DC filter water cooled capacitor

    DC filter water cooled capacitor

    10

    Frequently Asked Questions

    Q1. What is the frequency range of an ultra high frequency capacitor?

    These capacitors are designed for high-frequency operations ranging from 30kHz, 40kHz, 50kHz, and up to 300kHz. They are specifically developed to satisfy the demanding requirements of ultra-high frequency induction heating equipment.

    Q2. How does an ultra-high frequency induction machine perform surface quenching?

    It utilizes induction heating technology to generate a targeted eddy-current on the workpiece surface. This raises the surface temperature rapidly to 800-1000 degrees Celsius in just a few seconds, facilitating rapid and precise surface quenching of industrial metal parts.

    Q3. What are the key technical specifications of these capacitors?

    Key technical specifications include a maximum rated voltage of 8K VAC, a rated frequency of up to 300 KHZ, an all-film medium, a water-cooling method for heat dissipation, and the use of degradable, non-PCB insulation oil.

    Q4. How do these capacitors contribute to energy conservation?

    By being integrated into the induction heating and melting process, these capacitors help improve the power factor of the system. A higher power factor optimizes electrical efficiency, which directly reduces overall energy consumption.

    Q5. Why is water-cooling necessary for these capacitors?

    Since the capacitors operate at ultra-high frequencies (up to 300kHz) and high voltages, they generate significant thermal energy. The water-cooling system ensures efficient heat dissipation, maintaining stable performance and extending the product's operational lifespan.
