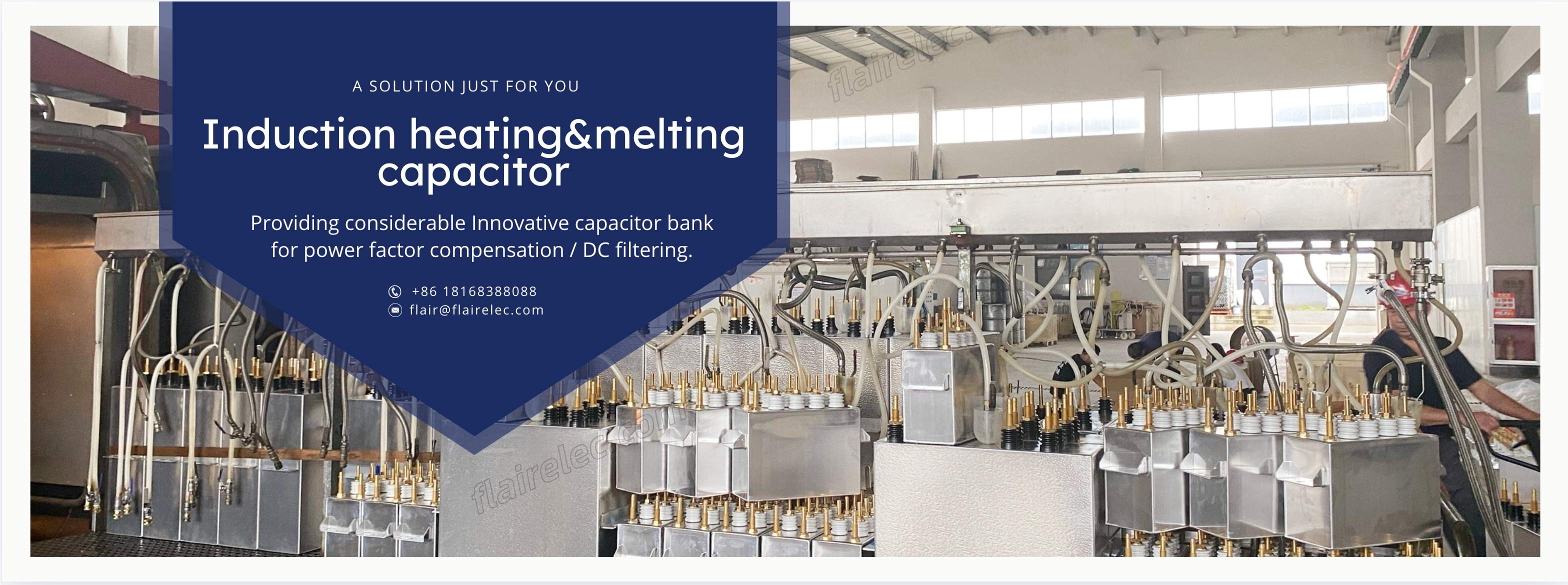

Water-Cooled Capacitor for Induction Melting Furnace
We offer customers power capacitor for induction heating and melting furnaces. Our service covering design and manufacture with good quality, good price and short delivery time. Our induction heating capacitor covering medium frequency induction heating capacitor, ultrasonic frequency induction heating capacitor, DC filtering capacitor (water-cooled type and dry type).
1.Medium frequency induction heating capacitor
| 1 | Medium | All film |
| 2 | Max voltage | 6000VAC |
| 3 | Max capacity | 15000Kvar |
| 4 | Max frequency | 15 Khz |
| 5 | Cooling method | water-cooling, forced-ventilation, self-cooling |
2. Ultrahigh frequency induction heating capacitor
Ultrahigh frequency as well as Ultrasonic frequency induction heating capacitor specially designed for high frequency induction heating equipements.
| 1 | Medium | whole film/ film and foil |
| 2 | Rated Voltage | Max 10K VAC |
| 3 | Frequency | Max 300Khz |
| 4 | cooling method | water-cooling, forced-ventilation, self-cooling |
3. DC filtering capacitor
The dc filtering capacitor mostly being applied in three-phase power source with 380VAC, 575VAC or 660VAC (connected in series) for high power induction heating. It is designed for series resonance induction heating with max 10 Khz.
| 1 | Medium | PP film/ film and foil |
| 2 | Rated Voltage | Max 3000VDC |
| 3 | Capacitance | Max 10000uf |
| 4 | cooling method | water-cooing, self-cooling |
4. Operating conditions
The capacitor should be installed and operationed in the enviroment which is free of severe mechanical vibration, harmful gases and vapors, conductive or explosive dust.
The ambient temperature should be -20C ~50 C. The cooling water should be purified, and max outlet cooling water must below 40C.
